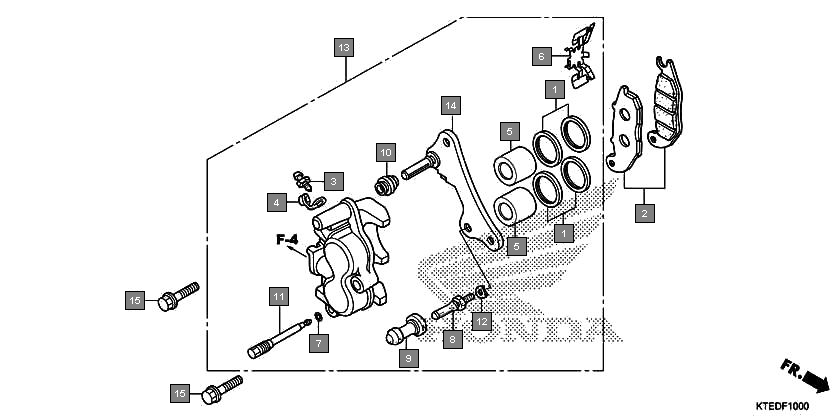

Motorcycles CB Shine CBF125MCC Frame Front brake caliper
Ref.No. Part No. Description Oty
1 06451GE2405 SEAL SET, PISTON 2
2 06455KPPN01 PAD SET, FR. 1
3 43352568003 SCREW, BLEEDER(NISSIN) 1
4 43353461771 CAP, BLEEDER 1
5 45107GE2006 PISTON 2
6 45108KPH951 SPRING, PAD 1
7 45111MAJG41 RING, STOPPER 1
8 45131GZ0006 BOLT, PIN 1
9 45132166016 BOOT, PIN BUSH(NISSIN) 1
10 45133MA3006 BOOT B 1
11 45215KPH951 PIN, HANGER 1
12 45216166006 WASHER, WAVE 1
13 45250KYE902 CALIPER SUB ASSY., R. FR.(NISSIN) 1
14 45290KPP901 BRACKET SUB ASSY., R. FR. 1
15 90155KSP900 BOLT, FLANGE, 8X25 2
