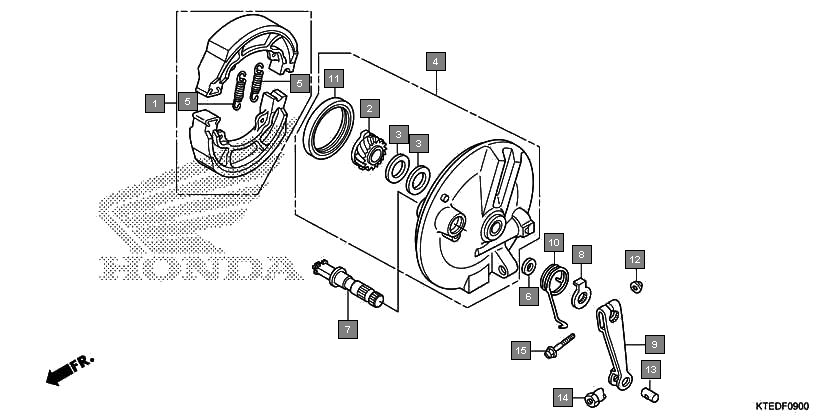

Motorcycles CB Shine CBF125MCC Frame Front brake panel
Ref.No. Part No. Description Oty
1 06430KTN700 SHOE SET, BRAKE(JB) 1
2 44806KTE910 GEAR, SPEEDOMETER(21T) 1
3 44809KTC900 WASHER, SPEEDOMETER GEAR 2
4 45010KTE951ZA PANEL SUB COMP., FR. BRAKE *NH303M* MAT AXIS GRAY METALLIC 1
5 45133KCC900 SPRING, FR. BRAKE SHOE (FOR RR.) 2
6 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
7 45134250000 DUST SEAL, BRAKE CAM 1
8 45141KTC900 CAM, FR. BRAKE 1
9 45145096650 INDICATOR, FR. BRAKE 1
10 45410KTE910 ARM, FR. BRAKE 1
11 45435GB2720 SPRING, BRAKE ARM RETURN 1
12 91251GK4003 OIL SEAL, 47X60X7(ARAI) 1
13 9405006000 NUT, FLANGE, 6MM 1
14 9501532001 JOINT B, BRAKE ARM 1
15 9501542000 NUT B, BRAKE ROD ADJUSTING 1
16 957010603200 BOLT, FLANGE, 6X32 1
17 957020603200 BOLT, FLANGE, 6X32 1
