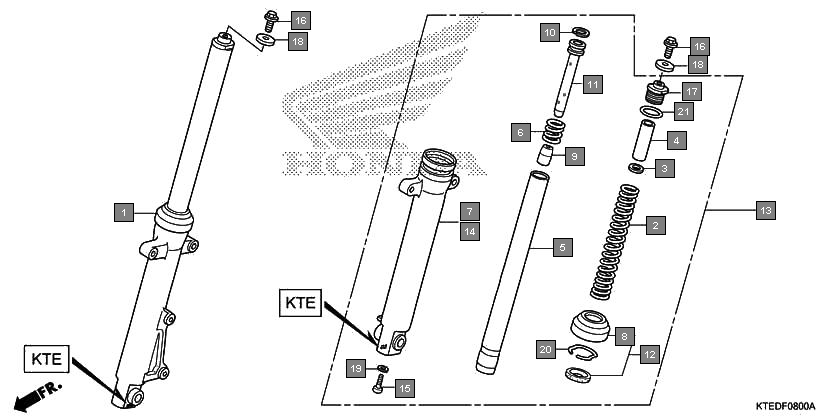

Motorcycles CB Shine CBF125MCC Frame Front fork(showa)
Ref.No. Part No. Description Oty
1 51400KTEA01 FORK ASSY., R. FR.(SHOWA) 1
2 51400KTEA11 FORK ASSY., R. FR.(SHOWA) 1
3 51400KTEA02 FORK ASSY., R. FR.(SHOWA) 1
4 51400KTEA12 FORK ASSY., R. FR.(SHOWA) 1
5 51401KTEA01 SPRING, FR. FORK 2
6 51403447731 PLATE, SPRING JOINT(SHOWA) 2
7 51403KCC901 COLLAR, SPRING(SHOWA) 2
8 51410KTEA01 PIPE COMP., FR. FORK 2
9 51412KAG901 SPRING, REBOUND(SHOWA) 2
10 51420KTEA01 CASE, R. FR. BOTTOM 1
11 51420KTEA11 CASE, R. FR. BOTTOM 1
12 51420KTEA02 CASE, R. FR. BOTTOM 1
13 51420KTEA12 CASE, R. FR. BOTTOM 1
14 51425KST901 SEAL, DUST 2
15 51432KST901 PIECE, OIL LOCK 2
16 51437KTC901 RING, PISTON 2
17 51440KTE911 PIPE, SEAT 2
18 51490KST305 SEAL SET, FR. FORK 2
19 51500KTEA01 FORK ASSY., L. FR.(SHOWA) 1
20 51500KTEA11 FORK ASSY., L. FR.(SHOWA) 1
21 51500KTEA02 FORK ASSY., L. FR.(SHOWA) 1
22 51500KTEA12 FORK ASSY., L. FR.(SHOWA) 1
23 51520KTEA01 CASE, L. FR. BOTTOM 1
24 51520KTEA11 CASE, L. FR. BOTTOM 1
25 51520KTEA02 CASE, L. FR. BOTTOM 1
26 51520KTEA12 CASE, L. FR. BOTTOM 1
27 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
28 90123KRM860 BOLT, FR. FORK 2
29 90123KSP901 BOLT A, FR. FORK 2
30 90521KSP900 WASHER, 10.3MM 2
31 90544439930 PACKING(SHOWA) 2
32 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
33 91356KAG901 O-RING(SHOWA) 2
