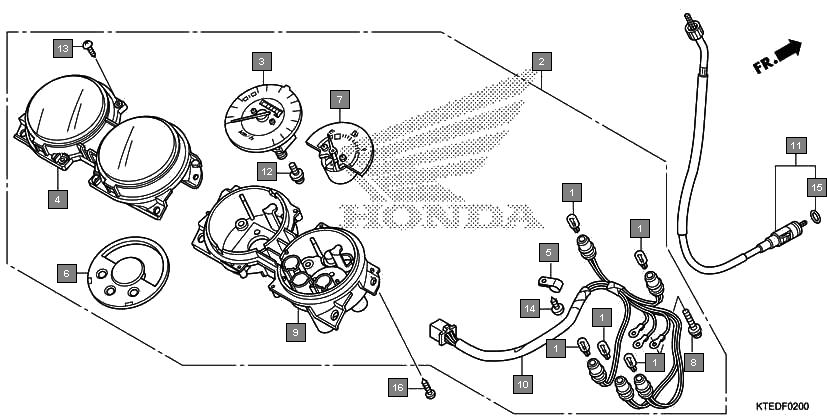

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 34908KVE900 | BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) | 5 |
2 | 37100KTE601 | METER ASSY., COMBINATION | 1 |
3 | 37210KTE601 | SPEEDOMETER COMP. | 1 |
4 | 37211KTE600 | LENS | 1 |
5 | 37215KS3901 | CLAMP | 1 |
6 | 37240KTE601 | PLATE ASSY., REFLECTING | 1 |
7 | 37300KTE601 | METER COMP., FUEL | 1 |
8 | 37305KE5008 | SCREW-WASHER, 3X22 | 3 |
9 | 37610KTE601 | CASE ASSY., UNDER | 1 |
10 | 37619KTE601 | SOCKET COMP. | 1 |
11 | 44830KTE912 | CABLE COMP., SPEEDOMETER | 1 |
12 | 90035166008 | SCREW-WASHER, SPECIAL, 4X10 | 2 |
13 | 90101KY6008 | SCREW, TAPPING, 3X14 | 4 |
14 | 90109MZ5008 | SCREW, TAPPING, 4X14 | 1 |
15 | 91352671003 | O-RING, 8.5X1.5(ARAI) | 1 |
16 | 91352671004 | O-RING, 8.5X1.5(NOK) | 1 |
17 | 9390335310 | SCREW, TAPPING, 5X16 | 4 |
