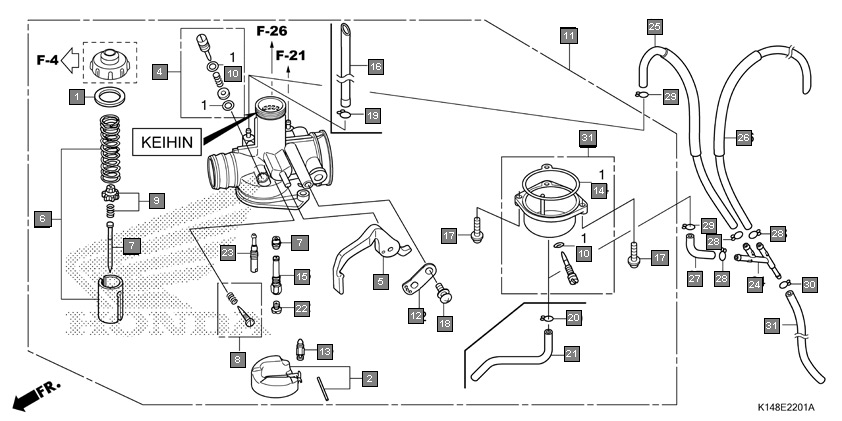

Motorcycles Dream Yuga CB110E Engine Carburetor(cb110e/me/amf)(keihin)
Ref.No. Part No. Description Oty
1 16010K08901 GASKET SET 1
2 16013KRB901 FLOAT SET 1
3 16015KZAW01 CHAMBER SET, FLOAT 1
4 16016KPWH01 SCREW SET 1
5 16019K14901 LEVER COMP., CHOKE 1
6 16022K23901 VALVE SET, THROTTLE 1
7 16027K23903 NEEDLE SET, JET 1
8 16028KYY901 SCREW SET 1
9 16037KPH901 PLATE SET, VALVE 1
10 16076KPL901 O-RING 2
11 16100K23903 CARBURETOR ASSY.(PB7EY A) 1
12 16119KZAW01 PLATE, SETTING 1
13 16155KRS861 VALVE COMP., FLOAT 1
14 16163KWS901 GASKET, FLOAT CHAMBER 1
15 16165K23901 HOLDER, NEEDLE JET 1
16 16198K23901 TUBE, AIR VENT 1
17 938920401808 SCREW-WASHER, 4X18 1
18 938920501218 SCREW-WASHER, 5X12 1
19 9500202089 CLIP, TUBE(B8) 1
20 9500202659 CLIP, TUBE(B6.5) 1
21 950053540050 TUBE, 3.5X400(95005-35001-50M) 1
22 99101KSS0950 JET, MAIN, #95 1
23 99103KPH0350 JET, SLOW, #35 1
