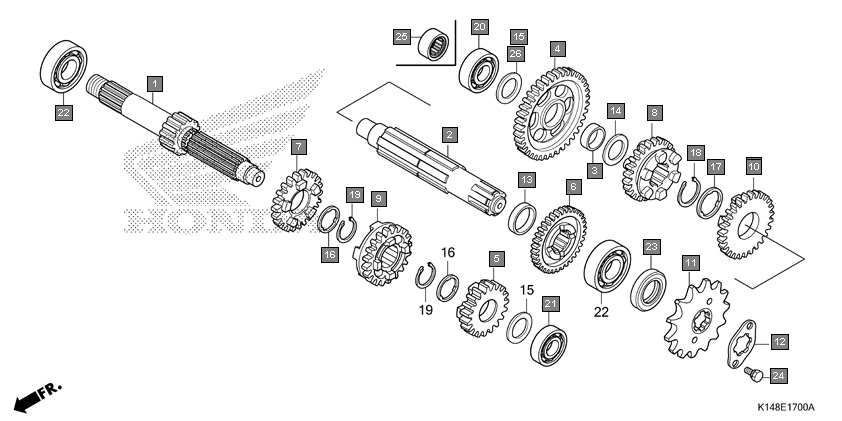

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 23211K23900 | MAINSHAFT(11T) | 1 |
| 2 | 23221KWS900 | COUNTERSHAFT | 1 |
| 3 | 23415KPH900 | BUSH, 15MM | 1 |
| 4 | 23421K23900 | GEAR, COUNTERSHAFT FIRST(35T) | 1 |
| 5 | 23431K14900 | GEAR, MAINSHAFT SECOND(17T) | 1 |
| 6 | 23441K14900 | GEAR, COUNTERSHAFT SECOND(30T) | 1 |
| 7 | 23451K14900 | GEAR, MAINSHAFT THIRD(21T) | 1 |
| 8 | 23461K14901 | GEAR, COUNTERSHAFT THIRD(25T) | 1 |
| 9 | 23471K14900 | GEAR, MAINSHAFT FOURTH(24T) | 1 |
| 10 | 23481KZAW00 | GEAR, COUNTERSHAFT FOURTH(22T) | 1 |
| 11 | 23801KWB600 | SPROCKET, DRIVE(14T) | 1 |
| 12 | 23802GN5910 | PLATE, FIXING | 1 |
| 13 | 23911KZAW00 | COLLAR, 20MM | 1 |
| 14 | 90412187000 | WASHER, THRUST, 15MM | 1 |
| 15 | 90412KPH900 | WASHER, SPECIAL, 12X23 | 2 |
| 16 | 90461035000 | WASHER, SPLINE, 17MM | 2 |
| 17 | 90461459010 | WASHER, SPLINE, 20MM | 1 |
| 18 | 90601459000 | CIRCLIP, 20MM | 1 |
| 19 | 90601KRM840 | CIRCLIP, 17MM | 2 |
| 20 | 91004K14901 | BEARING, RADIAL BALL, 6201(NEI) | 1 |
| 21 | 91004KWS901 | BEARING, RADIAL BALL, 6201(FAG) | 1 |
| 22 | 91005KWS901 | BEARING, RADIAL BALL, 6001(FAG) | 1 |
| 23 | 91005K14901 | BEARING, BALL RADIAL, 6001(NEI) | 1 |
| 24 | 91006K14901 | BEARING, RADIAL BALL, 6203 (SKF) | 2 |
| 25 | 91006KWS902 | BEARING, RADIAL BALL, 6203(NSK) | 2 |
| 26 | 91204KWB601 | OIL SEAL, 17X29X5 | 1 |
| 27 | 93101060100A | BOLT, HEX., 6X10 | 2 |
