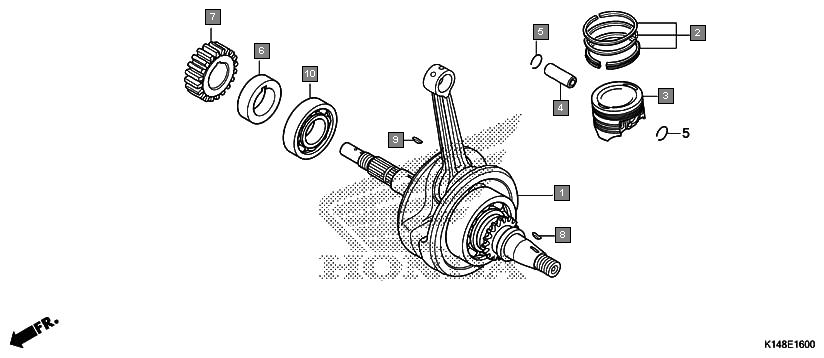

Motorcycles Dream Yuga CB110E Engine Crankshaft/piston
Ref.No. Part No. Description Oty
1 13000KWS900 CRANKSHAFT COMP. 1
2 13000K23901 CRANKSHAFT COMP. 1
3 13012KZAW00 RING SET, PISTON(0.25) (RIKEN) 1
4 13012K14900 RING SET, PISTON(0.25) (NIPPON PISTON RING) 1
5 13013KZAW00 RING SET, PISTON(0.50) (RIKEN) 1
6 13013K14900 RING SET, PISTON(0.50) (NIPPON PISTON RING) 1
7 13011K14900 RING SET, PISTON(STD.) (NIPPON PISTON RING) 1
8 13011KZAW00 RING SET, PISTON(STD.) (RIKEN) 1
9 13101K23900 PISTON 1
10 13102K23900 PISTON(0.25) 1
11 13103K23900 PISTON(0.50) 1
12 13111KWS900 PIN, PISTON 1
13 13115K23900 CLIP, PISTON PIN, 12MM 2
14 13412KWS900 COLLAR, PRIMARY DRIVE GEAR 1
15 23121KWS900 GEAR, PRIMARY DRIVE(18T) 1
16 90741KFB000 KEY, WOODRUFF, 4MM 1
17 90741KGH900 KEY, WOODRUFF, 4MM 1
18 91001K14901 BEARING, RADIAL BALL, 63/22 (NEI) 1
19 91001KWS901 BEARING, RADIAL BALL, 63/22 (NSK) 1
20 91001K23902 BEARING, RADIAL BALL, 63/22 (SKF) 1
