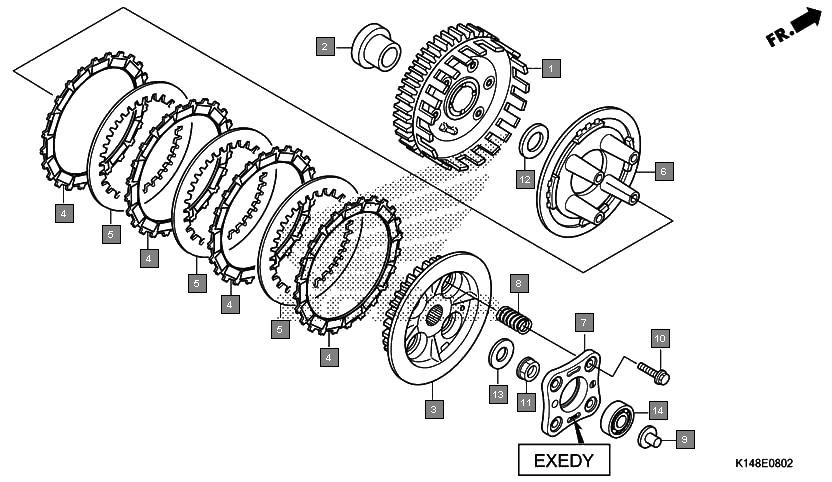

Motorcycles Dream Yuga CB110E Engine Clutch(cb110e/me/amf)(exedy)
Ref.No. Part No. Description Oty
1 22100K23902 OUTER COMP., CLUTCH(EXEDY) 1
2 22115KWS900 GUIDE, CLUTCH OUTER 1
3 22120K23902 CENTER, CLUTCH(EXEDY) 1
4 22201KWW742 DISK, CLUTCH FRICTION(EXEDY) 4
5 22321K23902 PLATE, CLUTCH(EXEDY) 3
6 22355K23902 PLATE, CLUTCH PRESSURE(EXEDY) 1
7 22361K23902 PLATE, CLUTCH LIFTER(EXEDY) 1
8 22401K23902 SPRING, CLUTCH(EXEDY) 4
9 22847KCC900 ROD, CLUTCH LIFTER 1
10 90050KFL850 BOLT, SPECIAL FLANGE, 6X25 4
11 90202KRM840 NUT, SPECIAL FLANGE, 14MM 1
12 90403KPH900 WASHER, THRUST, 17MM 1
13 90432KPTA00 WASHER, 14.2X26X3 1
14 961006200000 BEARING, RADIAL BALL, 6200 1
