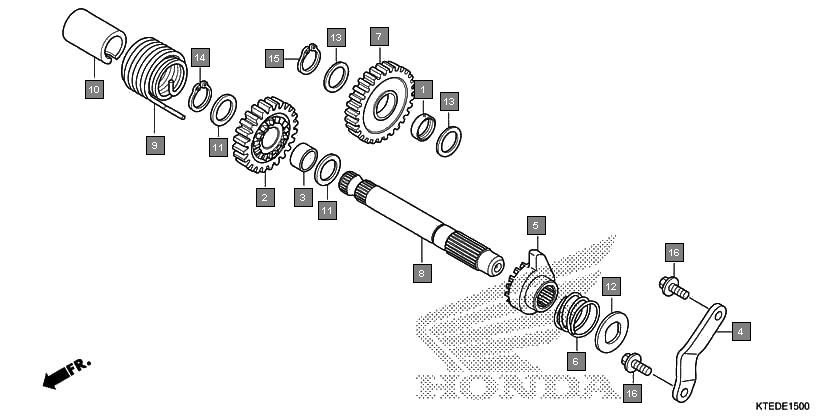

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 23427KRM840 | BUSH, 17X20.5X8.0 | 1 |
| 2 | 28211KVS600 | PINION, KICK STARTER(24T) | 1 |
| 3 | 28212KVS600 | COLLAR, 18.5MM | 1 |
| 4 | 28215KRM840 | PLATE, KICK STOPPER | 1 |
| 5 | 28221KRM840 | RATCHET, STARTER | 1 |
| 6 | 28223KRM840 | SPRING, RATCHET | 1 |
| 7 | 28231KWF900 | GEAR, KICK STARTER IDLE(29T) | 1 |
| 8 | 28251KWG600 | SPINDLE, KICK STARTER | 1 |
| 9 | 28261KRM840 | SPRING, KICK RETURN | 1 |
| 10 | 28282KRM840 | COLLAR, KICK SPRING | 1 |
| 11 | 90451KRM840 | WASHER, THRUST, 16MM | 2 |
| 12 | 90455KRM840 | WASHER, SPECIAL, 14MM | 1 |
| 13 | 90458KVS900 | WASHER, THRUST, 17MM | 2 |
| 14 | 90602KPT900 | CIRCLIP, EXTERNAL, 16MM | 1 |
| 15 | 9451016000 | CIRCLIP, EXTERNAL, 16MM | 1 |
| 16 | 90602KRM840 | CIRCLIP, EXTERNAL, 17MM | 1 |
| 17 | 957010601600 | BOLT, FLANGE, 6X16 | 2 |
| 18 | 957020601600 | BOLT, FLANGE, 6X16 | 2 |
