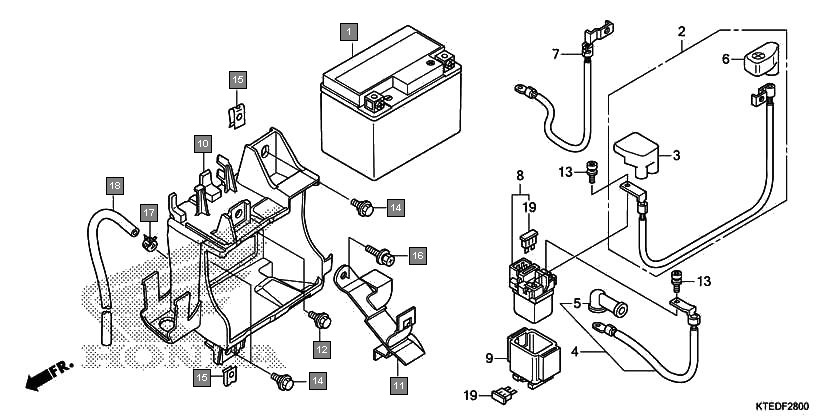

Motorcycles CB Shine CBF125CC Frame Battery
Ref.No. Part No. Description Oty
1 31500KWS801 BATTERY ASSY.(ETZ3-BS) (FURUKAWA) 1
2 50380KTE600 BOX, BATTERY 1
3 50381KTE600 BAND, BATTERY 1
4 90111GJ5000 BOLT, FLANGE, 6MM 1
5 90116KVB900 BOLT, FLANGE, 6MM 3
6 90320747000 NUT, SPRING, 6MM 2
7 92301060120A BOLT, RECESSED, 6X12 1
8 950024085008 CLAMP, TUBE(D8.5) 1
9 950055043030 TUBE, 5X430(95005-50001-30M) 1
