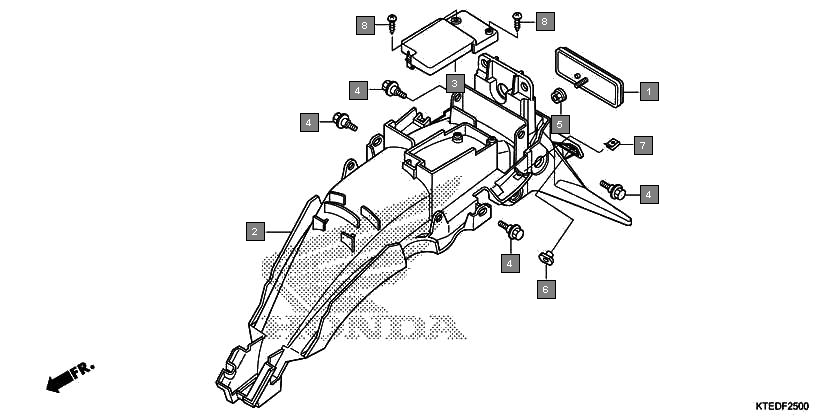

Motorcycles CB Shine CBF125CC Frame Rear fender
Ref.No. Part No. Description Oty
1 33741KPL902 REFLECTOR, REFLEX 1
2 80101KTE600 FENDER, RR. 1
3 80102KTEA00 COVER, TOOL BOX 1
4 90111162000 BOLT, FLANGE, 6MM 4
5 90301KWN901 NUT, U, 5MM 1
6 90311KTE910 NUT, RR. FENDER 2
7 90344KTE910 NUT, CLIP, 4MM 2
8 9390324320 SCREW, TAPPING, 4X12 2
