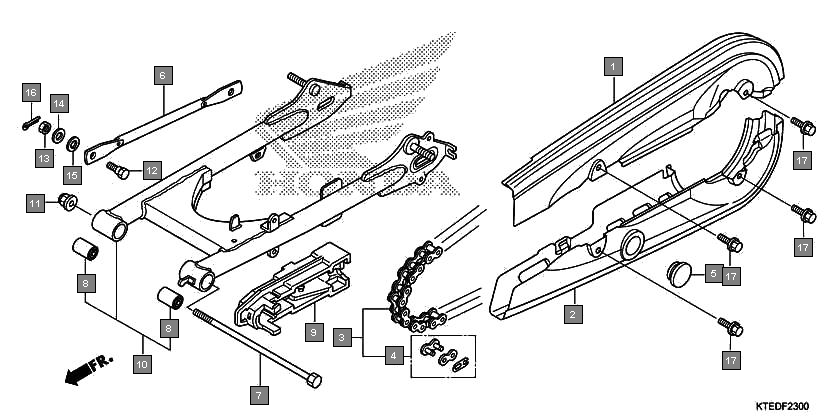

Motorcycles CB Shine CBF125CC Frame Swingarm
Ref.No. Part No. Description Oty
1 40510KTEA00ZA CASE, UPPER HALF DRIVE CHAIN *NH105* MAT BLACK(#15-#20) 1
2 40520KTE910ZB CASE, UNDER HALF DRIVE CHAIN *NH105* MAT BLACK(#15-#20) 1
3 40530KTE601 CHAIN, DRIVE(420-116)(LGB) 1
4 40530KTE912 CHAIN, DRIVE(420-116)(DID) 1
5 40531KWB601 JOINT, DRIVE CHAIN(DAIDO) 1
6 40531KTE912 JOINT, DRIVE CHAIN(LGB) 1
7 40545001000 CAP, CHAIN CASE PEEP HOLE 1
8 43431KTE910 ARM, RR. BRAKE STOPPER 1
9 52101KTC900 BOLT, SWINGARM PIVOT 1
10 52147KW7900 BUSH, SWINGARM PIVOT RUBBER 2
11 52170KTE910 SLIDER, CHAIN 1
12 52200KTEA00 SWINGARM SUB ASSY., RR. 1
13 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
14 9281210000 BOLT A, STOPPER ARM 1
15 94001080000S NUT, HEX., 8MM 1
16 9410108000 WASHER, PLAIN, 8MM 1
17 9411110000 WASHER, SPRING, 10MM 1
18 9420120150 PIN, SPLIT, 2.0X15 1
19 957010601000 BOLT, FLANGE, 6X10 4
20 957020601000 BOLT, FLANGE, 6X10 4
