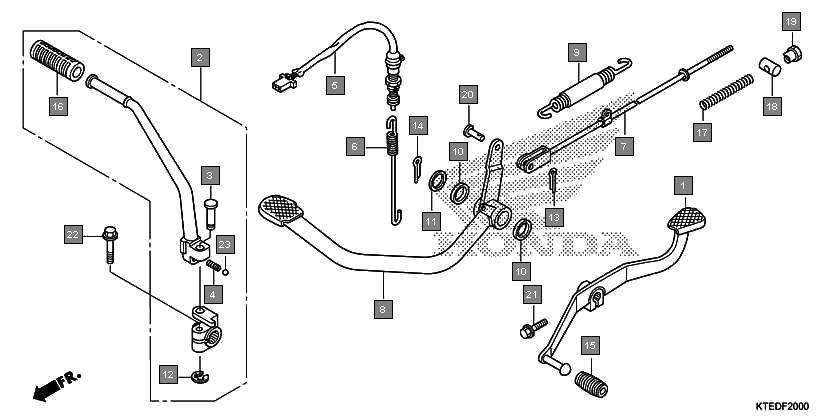

Motorcycles CB Shine CBF125CC Frame Pedal/kick starter arm
Ref.No. Part No. Description Oty
1 24701KTE910 PEDAL, GEAR CHANGE 1
2 28300KTEA00 ARM ASSY., KICK STARTER 1
3 28321KTE910 PIN, KICK STARTER 1
4 28333KANT40 SPRING, KICK STARTER STOPPER 1
5 35350KTEA01 SWITCH ASSY., RR. STOP 1
6 35357KSP900 SPRING, STOP SWITCH 1
7 43451KTE910 ROD COMP., RR. BRAKE 1
8 46500KTE910 PEDAL, BRAKE 1
9 46510KSP900 SPRING SET, BRAKE PEDAL 1
10 46525KK0003 DUST SEAL, 17X20X2.5 2
11 90521028000 WASHER, 17X22 1
12 90601473003 E-RING, 8MM 1
13 9420120120 PIN, SPLIT, 2.0X12 1
14 9420130300 PIN, SPLIT, 3.0X30 1
15 9501140000 RUBBER, CHANGE PEDAL 1
16 9501151000 RUBBER A, KICK STARTER 1
17 9501473100 SPRING A, BRAKE ROD 1
18 9501532001 JOINT B, BRAKE ARM 1
19 9501542000 NUT B, BRAKE ROD ADJUSTING 1
20 9501553000 PIN C, JOINT 1
21 957010602000 BOLT, FLANGE, 6X20 1
22 957020602000 BOLT, FLANGE, 6X20 1
23 957010802500 BOLT, FLANGE, 8X25 1
24 957020802500 BOLT, FLANGE, 8X25 1
25 9621108000 BALL, STEEL, #8(1/4) 1
