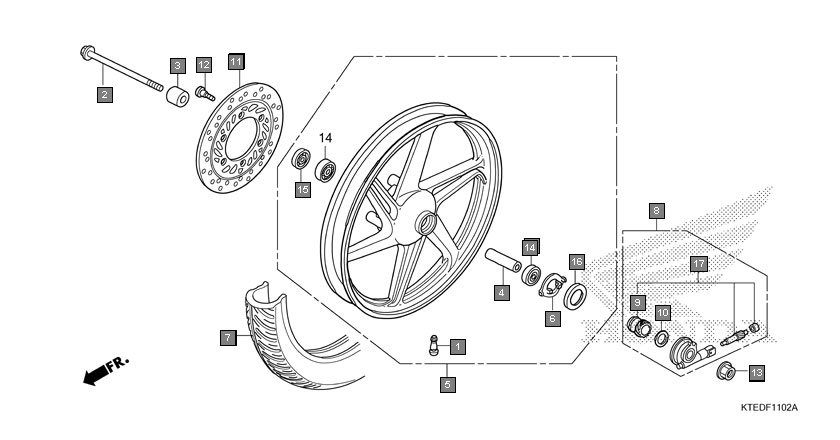

Motorcycles CB Shine CBF125CC Frame Front wheel(3)
Ref.No. Part No. Description Oty
1 42753KWF901 VALVE, RIM(TRITON) 1
2 44301KPL900 AXLE, FR. WHEEL 1
3 44311KSP900 COLLAR, FR. WHEEL SIDE 1
4 44620KSP900 COLLAR, FR. AXLE DISTANCE 1
5 44650KTE610ZA WHEEL SUB ASSY., FR. *NH303M* MAT AXIS GRAY METALLIC 1
6 44680410000 RETAINER, GEAR BOX 1
7 44711KRY971 TIRE, FR.(MRF) (80/100-18 M/C 47P) 1
8 44711KTE602 TIRE, FR.(TVS) (80/100-18 M/C 47P) 1
9 44800KSP900ZD BOX ASSY., SPEEDOMETER GEAR *NH303M* MAT AXIS GRAY METALLIC 1
10 44804KSP901 GEAR, SPEEDOMETER 1
11 44809KPL900 WASHER, SPEEDOMETER GEAR 1
12 45251KVCA50 DISK, FR. BRAKE(YUHUAN) 1
13 45251KSP861 DISK, FR. BRAKE(YUTAKA) 1
14 90105KSP870 BOLT, DISK, 8X24 6
15 90306KST942 NUT, FLANGE, 12MM (LEO FASTENERS) 1
16 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
17 961406301010 BEARING, RADIAL BALL, 6301U 2
18 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 2
19 91251KPH901 DUST SEAL, 21X37X7(ARAI) 1
20 91258410013 DUST SEAL, 40X50X5(ARAI) 1
21 44820KSP900 GEAR SET, SPEEDOMETER 1
