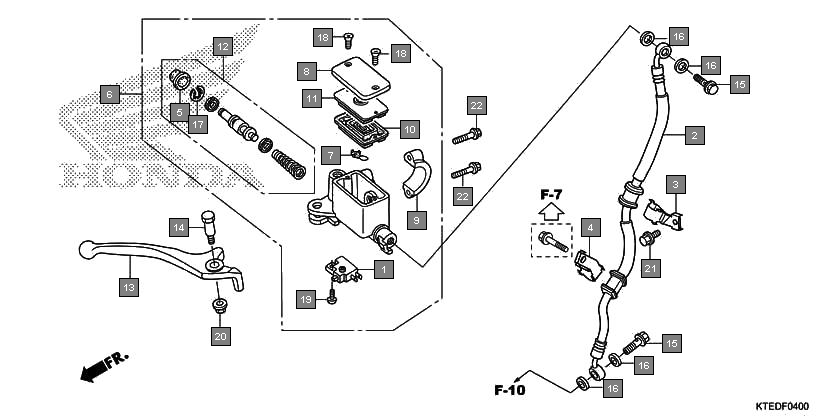

Motorcycles CB Shine CBF125CC Frame Fr. brake master cylinder
Ref.No. Part No. Description Oty
1 35340KSPB51 SWITCH ASSY., FR. STOP 1
2 45126KTE611 HOSE COMP., FR. BRAKE 1
3 45155KTE610 CLAMPER A, FR. BRAKE HOSE 1
4 45156KSP900 CLAMPER B, FR. BRAKE HOSE 1
5 45504410003 BOOT COMP. 1
6 45510KSPB51 CYLINDER SUB ASSY., FR. BRAKE MASTER 1
7 45512MA6006 PROTECTOR 1
8 45513HA2006 CAP, MASTER CYLINDER 1
9 45517166006 HOLDER, MASTER CYLINDER 1
10 45520MG7006 DIAPHRAGM 1
11 45521HA2006 PLATE, DIAPHRAGM 1
12 45530471831 CYLINDER SET, MASTER 1
13 53175KET921 LEVER, R. STEERING HANDLE 1
14 90114KGH900 BOLT, HANDLE LEVER PIVOT 1
15 90145GW3981 BOLT, OIL, 10X22 2
16 90545300000 WASHER, OIL BOLT 4
17 90651MA5671 CIRCLIP 1
18 93600040121G SCREW, FLAT, 4X12 2
19 938930401217 SCREW-WASHER, 4X12 1
20 9405006000 NUT, FLANGE, 6MM 1
21 960010601200 BOLT, FLANGE, 6X12 1
22 960010602207 BOLT, FLANGE, 6X22 2
