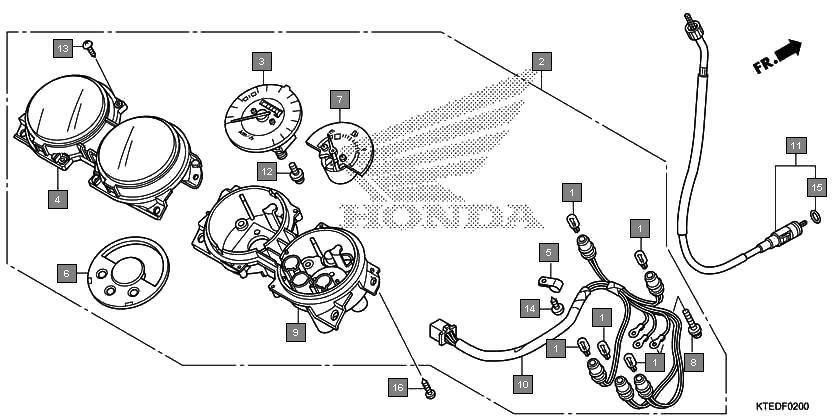

Motorcycles CB Shine CBF125CC Frame Meter
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 5
2 37100KTE601 METER ASSY., COMBINATION 1
3 37210KTE601 SPEEDOMETER COMP. 1
4 37211KTE600 LENS 1
5 37215KS3901 CLAMP 1
6 37240KTE601 PLATE ASSY., REFLECTING 1
7 37300KTE601 METER COMP., FUEL 1
8 37305KE5008 SCREW-WASHER, 3X22 3
9 37610KTE601 CASE ASSY., UNDER 1
10 37619KTE601 SOCKET COMP. 1
11 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
12 90101KY6008 SCREW, TAPPING, 3X14 4
13 90109MZ5008 SCREW, TAPPING, 4X14 1
14 91352671003 O-RING, 8.5X1.5(ARAI) 1
15 91352671004 O-RING, 8.5X1.5(NOK) 1
16 9390335310 SCREW, TAPPING, 5X16 4
17 44830KTE912 CABLE COMP., SPEEDOMETER 1
