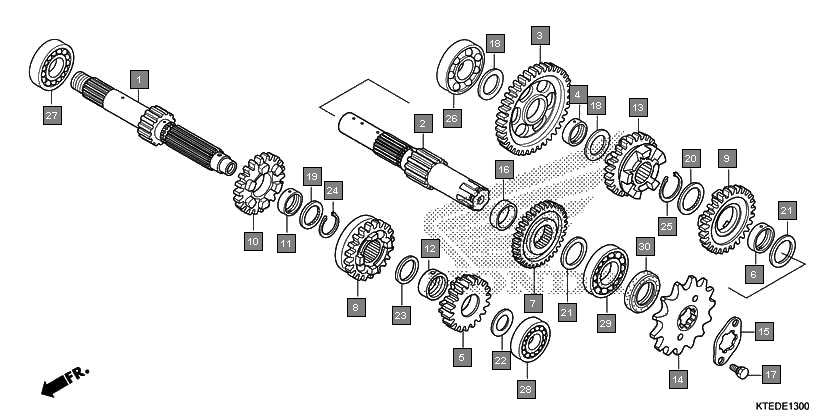

Motorcycles CB Shine CBF125CC Engine Transmission
Ref.No. Part No. Description Oty
1 23210KTE910 MAINSHAFT COMP., TRANSMISSION (12T) 1
2 23220KTE910 COUNTERSHAFT COMP. 1
3 23421KTE600 GEAR, COUNTERSHAFT LOW(41T) 1
4 23427KRM840 BUSH, 17X20.5X8.0 1
5 23431KTE600 GEAR, MAINSHAFT SECOND(21T) 1
6 23432KTE910 BUSH, 20MM 1
7 23441KTE600 GEAR, COUNTERSHAFT SECOND(42T) 1
8 23451KTE600 GEAR, MAINSHAFT THIRD(20T) 1
9 23461KTE600 GEAR, COUNTERSHAFT THIRD(27T) 1
10 23471KTE600 GEAR, MAINSHAFT FOURTH(26T) 1
11 23472KTE910 BUSH, 17MM 1
12 23473KTE910 BUSH, 14.3MM 1
13 23481KTE600 GEAR, COUNTERSHAFT FOURTH(27T) 1
14 23801KTE910 SPROCKET, DRIVE(14T) 1
15 23811KR3600 PLATE A2, FIXING 1
16 23911KTE910 COLLAR, 25MM 1
17 90084041000 BOLT, DRIVE SPROCKET FIXING 2
18 90452GB4770 WASHER, THRUST, 17MM 2
19 90452KRM840 WASHER, SPLINE, 17X23X1.6 1
20 90453KRM840 WASHER, SPLINE, 20MM 1
21 90454KTE910 WASHER, THRUST, 20MM 2
22 90456KRM840 WASHER, THRUST, 12MM 1
23 90456KTE910 WASHER, THRUST, 14.5MM 1
24 90601KRM840 CIRCLIP, 17MM 1
25 90605200000 SET RING, 20MM 1
26 91003KSP910 BEARING, RADIAL BALL, 17X42X12 1
27 91004KTN900 BEARING, RADIAL BALL, 17X40X12 1
28 91005KTN900 BEARING, RADIAL BALL, 12X32X10 1
29 91006KTN900 BEARING, RADIAL BALL, 20X47X14 1
30 91216KSP911 OIL SEAL, 20X34X7(ARAI) 1
