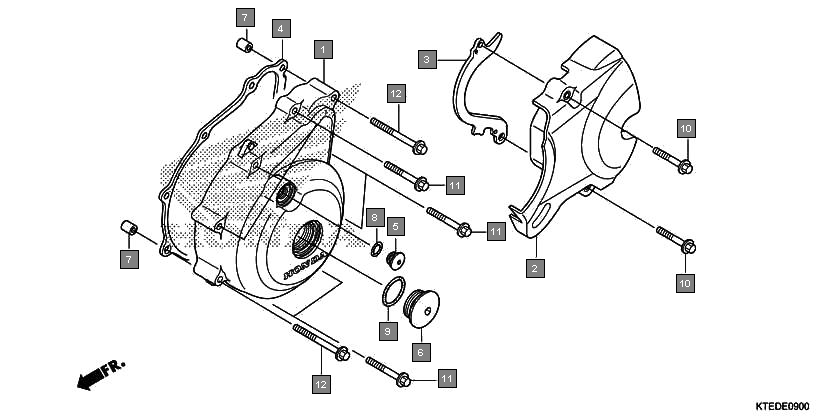

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 11341KTEA00 | COVER, L. CRANKCASE | 1 |
2 | 11360KTEA00 | COVER COMP., L. RR. | 1 |
3 | 11365KTE910 | GUIDE, DRIVE CHAIN | 1 |
4 | 11395KWK900 | GASKET, L. COVER | 1 |
5 | 90084K38940 | CAP, 14MM | 1 |
6 | 90087KSP860 | CAP, 32MM | 1 |
7 | 90702KRM840 | DOWEL PIN, 8X14 | 2 |
8 | 91303KRM840 | O-RING, 13.8X2.5 | 1 |
9 | 91305KRM840 | O-RING, 31.7X2.4 | 1 |
10 | 960010603000 | BOLT, FLANGE, 6X30 | 2 |
11 | 960010603500 | BOLT, FLANGE, 6X35 | 7 |
12 | 960010604500 | BOLT, FLANGE, 6X45 | 2 |
