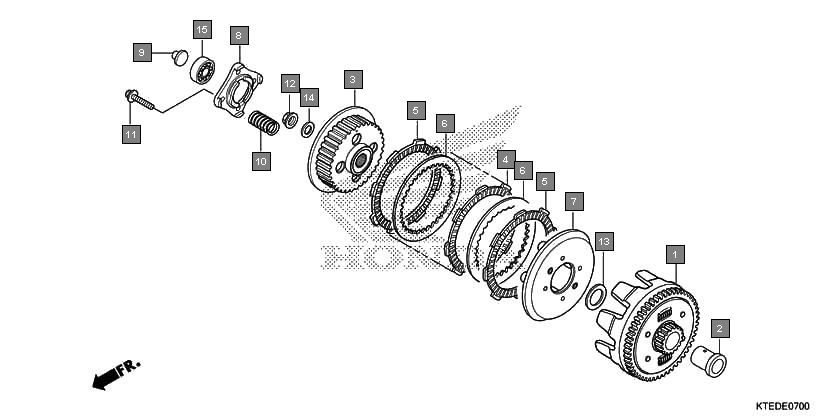

Motorcycles CB Shine CBF125CC Engine Clutch
Ref.No. Part No. Description Oty
1 22100KWF900 OUTER COMP., CLUTCH 1
2 22115KSP910 GUIDE, CLUTCH OUTER 1
3 22120KTE910 CENTER, CLUTCH 1
4 22201KPM850 DISK, CLUTCH FRICTION(4X8X45) 2
5 22201MR8000 DISK, CLUTCH FRICTION 2
6 22321KPS900 PLATE, CLUTCH 3
7 22355KTE910 PLATE, CLUTCH PRESSURE 1
8 22361KPK900 PLATE, CLUTCH LIFTER 1
9 22366KRM840 ROD, CLUTCH LIFTER 1
10 22401KRM840 SPRING, CLUTCH 4
11 90008KRM840 BOLT, FLANGE, 6X25 4
12 90202KRM840 NUT, SPECIAL FLANGE, 14MM 1
13 90401KTE910 WASHER, PLAIN, 17MM 1
14 90501KPTA00 WASHER, 14.1X29X2.8 1
15 961006003000 BEARING, RADIAL BALL, 6003 1
