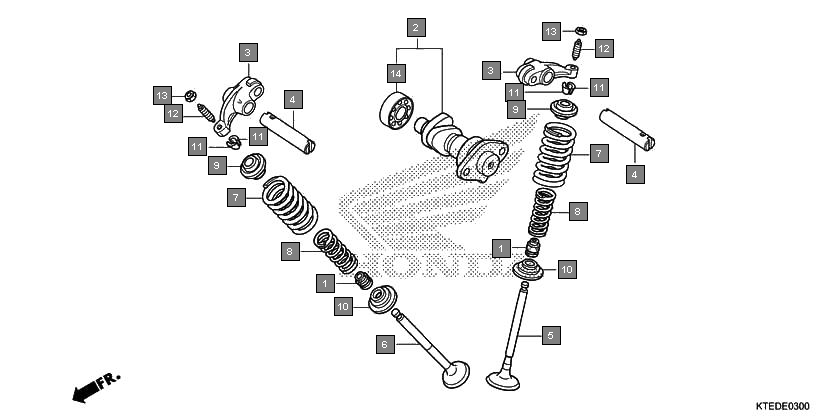

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 12209GB4682 | SEAL, VALVE STEM(ARAI) | 2 |
2 | 14100KTE910 | CAMSHAFT COMP. | 1 |
3 | 14430KSP910 | ARM COMP., VALVE ROCKER | 2 |
4 | 14451KRM840 | SHAFT, ROCKER ARM | 2 |
5 | 14711KTE910 | VALVE, IN. | 1 |
6 | 14721KTE910 | VALVE, EX. | 1 |
7 | 14751KSP910 | SPRING, VALVE OUTER | 2 |
8 | 14761KSP910 | SPRING, VALVE INNER | 2 |
9 | 14771KSP910 | RETAINER, VALVE SPRING | 2 |
10 | 14777KGH900 | SEAT, VALVE SPRING | 2 |
11 | 14781MA6000 | COTTER, VALVE | 4 |
12 | 90012KK3830 | SCREW, TAPPET ADJUSTING | 2 |
13 | 90206250000 | NUT, TAPPET ADJUSTING | 2 |
14 | 961006001300 | BEARING, RADIAL BALL, 6001 | 1 |
