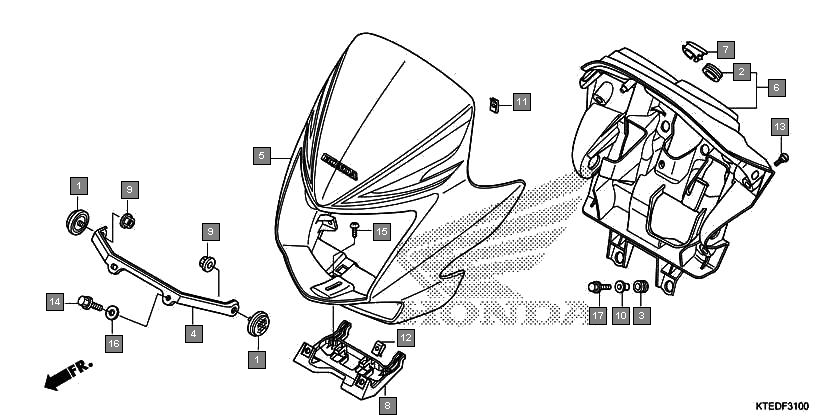

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33740KTE601 | REFLECTOR, FR. SIDE REFLEX | 2 |
2 | 37312KT2000 | GROMMET, COMBINATION SWITCH | 1 |
3 | 61103357000 | RUBBER, FR. FENDER MOUNTING | 4 |
4 | 61104KTE600 | STAY, REFLECTOR | 1 |
5 | 61300KTE600ZA | VISOR SET, FR.(WL) *TYPE5* | 1 |
6 | 61300KTE600ZB | VISOR SET, FR.(WL) *TYPE4* | 1 |
7 | 61300KTE600ZC | VISOR SET, FR.(WL) *TYPE3* | 1 |
8 | 61300KTE600ZD | VISOR SET, FR.(WL) *TYPE2* | 1 |
9 | 61300KTE600ZE | VISOR SET, FR.(WL) *TYPE1* | 1 |
10 | 61310KTE600 | COVER COMP., HEADLIGHT RR. | 1 |
11 | 61313KTE600 | GROMMET, VISOR | 1 |
12 | 64315KTE600 | STAY, FR. NUMBER PLATE | 1 |
13 | 90302KTE911 | NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) | 2 |
14 | 90310KWS900 | COLLAR, FR. COWL | 4 |
15 | 90320GC3000 | NUT, SPRING, 5MM | 5 |
16 | 90320GC3000 | NUT, SPRING, 5MM | 2 |
17 | 90320KTE600 | NUT, SPRING, 5MM | 2 |
18 | 91509GE2760 | SCREW, PAN, 5X11.5 | 5 |
19 | 92101050120A | BOLT, HEX., 5X12 | 2 |
20 | 9390325220 | SCREW, TAPPING, 5X12 | 2 |
21 | 9410105000 | WASHER, PLAIN, 5MM | 2 |
22 | 960010602200 | BOLT, FLANGE, 6X22 | 4 |
