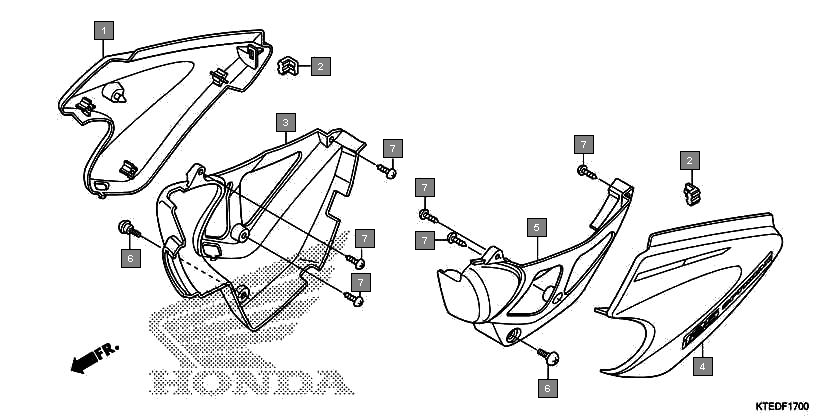

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 83500KTE600ZA | COVER SET, R. SIDE(WL) *TYPE5* | 1 |
2 | 83500KTE600ZB | COVER SET, R. SIDE(WL) *TYPE4* | 1 |
3 | 83500KTE600ZC | COVER SET, R. SIDE(WL) *TYPE3* | 1 |
4 | 83500KTE600ZD | COVER SET, R. SIDE(WL) *TYPE2* | 1 |
5 | 83500KTE600ZE | COVER SET, R. SIDE(WL) *TYPE1* | 1 |
6 | 83502KCC900 | GROMMET, SIDE COVER | 2 |
7 | 83502KTEA00 | SUB COVER, R. SIDE | 1 |
8 | 83600KTE600ZA | COVER SET, L. SIDE(WL) *TYPE5* | 1 |
9 | 83600KTE600ZB | COVER SET, L. SIDE(WL) *TYPE4* | 1 |
10 | 83600KTE600ZC | COVER SET, L. SIDE(WL) *TYPE3* | 1 |
11 | 83600KTE600ZD | COVER SET, L. SIDE(WL) *TYPE2* | 1 |
12 | 83600KTE600ZE | COVER SET, L. SIDE(WL) *TYPE1* | 1 |
13 | 83602KTEA00 | SUB COVER, L. SIDE | 1 |
14 | 90104KT2000 | SCREW, SPECIAL, 6X14 | 2 |
15 | 9390324320 | SCREW, TAPPING, 4X12 | 6 |
