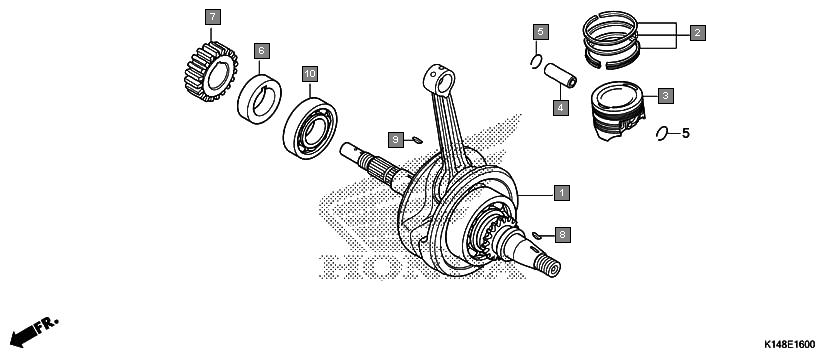

Motorcycles Dream Yuga CB110D Engine Crankshaft/piston
Ref.No. Part No. Description Oty
1 13000K23901 CRANKSHAFT COMP. 1
2 13000KWS900 CRANKSHAFT COMP. 1
3 13011K14900 RING SET, PISTON(STD.) (NIPPON PISTON RING) 1
4 13012K14900 RING SET, PISTON(0.25) (NIPPON PISTON RING) 1
5 13014KZAW00 RING SET, PISTON(0.75)(RIKEN) 1
6 13011KZAW00 RING SET, PISTON(STD.) (RIKEN) 1
7 13013KZAW00 RING SET, PISTON(0.50) (RIKEN) 1
8 13014K14900 RING SET, PISTON(0.75) 1
9 13012KZAW00 RING SET, PISTON(0.25) (RIKEN) 1
10 13015KZAW00 RING SET, PISTON(1.00)(RIKEN) 1
11 13015K14900 RING SET, PISTON(1.00)(NIPPON PISTON RING) 1
12 13013K14900 RING SET, PISTON(0.50) (NIPPON PISTON RING) 1
13 13103KWS900 PISTON(0.50) 1
14 13101KWS900 PISTON(STD.) 1
15 13104KWS900 PISTON(0.75) 1
16 13105KWS900 PISTON(1.00) 1
17 13102KWS900 PISTON(0.25) 1
18 13111KWS900 PIN, PISTON 1
19 13115KWS900 CLIP, PISTON PIN, 12MM 2
20 13412KWS900 COLLAR, PRIMARY DRIVE GEAR 1
21 23121KWS900 GEAR, PRIMARY DRIVE(18T) 1
22 90741KFB000 KEY, WOODRUFF, 4MM 1
23 90741KGH900 KEY, WOODRUFF, 4MM 1
24 91001K14901 BEARING, RADIAL BALL, 63/22 (NEI) 1
25 91001K23902 BEARING, RADIAL BALL, 63/22 (SKF) 1
26 91001KWS901 BEARING, RADIAL BALL, 63/22 (NSK) 1
