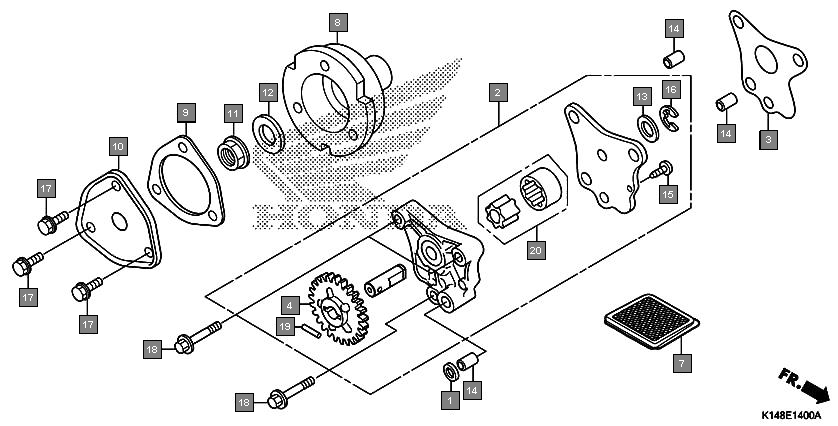

Motorcycles Dream Yuga CB110D Engine Oil pump
Ref.No. Part No. Description Oty
1 12396KRM840 GASKET B, HEAD COVER 1
2 15100KWS900 PUMP ASSY., OIL 1
3 15119KWS901 GASKET, OIL PUMP 1
4 15133KWS900 GEAR, OIL PUMP DRIVEN(25T) 1
5 15421KSP910 SCREEN, OIL FILTER 1
6 15431KWS900 ROTOR, OIL FILTER 1
7 15439KWS901 GASKET, OIL FILTER COVER 1
8 15441KWS900 COVER, OIL FILTER 1
9 90202KRM840 NUT, SPECIAL FLANGE, 14MM 1
10 90432KPTA00 WASHER, 14.2X26X3 1
11 90455KWS900 WASHER, 9.2MM 1
12 90702KRM840 DOWEL PIN, 8X14 3
13 9390134120 SCREW, TAPPING, 4X8 1
14 9454006018 E-RING, 6MM 1
15 957010601400 BOLT, FLANGE, 6X14 3
16 957020601400 BOLT, FLANGE, 6X14 3
17 960010603500 BOLT, FLANGE, 6X35 3
18 9622030158 ROLLER, 3X15.8 1
19 15021324000 ROTOR SET, OIL PUMP 1
