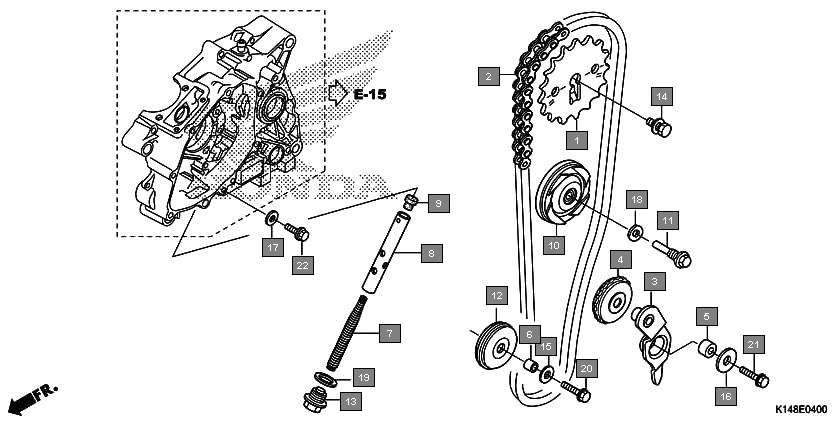

Motorcycles Dream Yuga CB110D Engine Cam chain/tensioner
Ref.No. Part No. Description Oty
1 14321KYY900 SPROCKET, CAM(32T) 1
2 14401KWS901 CHAIN, CAM(88LE-SH) 1
3 14500KWS900 ARM COMP., CAM CHAIN TENSIONER 1
4 14502086000 ROLLER, CAM CHAIN TENSIONER 1
5 14531KWS900 COLLAR, CAM CHAIN TENSIONER 1
6 14532KWS900 COLLAR, CAM CHAIN ROLLER 1
7 14541GB4681 SPRING, CAM CHAIN TENSIONER 1
8 14550KWS900 ROD COMP., TENSIONER PUSH 1
9 14566086030 HEAD, CAM CHAIN TENSIONER PUSH ROD 1
10 14610KWB600 ROLLER COMP., CAM CHAIN GUIDE 1
11 14615KFL850 PIN, GUIDE ROLLER 1
12 14670KWS900 ROLLER COMP., CAM CHAIN GUIDE 1
13 90081035000 BOLT, SEALING, 14MM 1
14 90082KYY900 BOLT, WASHER, 8X22 1
15 90401ZA0000 WASHER, PLAIN, 6.5X15 1
16 90404KWB600 WASHER, 8.5X26X2.3 1
17 90463ML7000 WASHER, SEALING, 6.5MM 1
18 90475KWB600 WASHER, 8MM 1
19 90544KF0000 WASHER, SEALING, 14MM 1
20 957020602500 BOLT, FLANGE, 6X25 1
21 957010602500 BOLT, FLANGE, 6X25 1
22 957010802500 BOLT, FLANGE, 8X25 1
23 957020802500 BOLT, FLANGE, 8X25 1
24 960010601400 BOLT, FLANGE, 6X14 1
