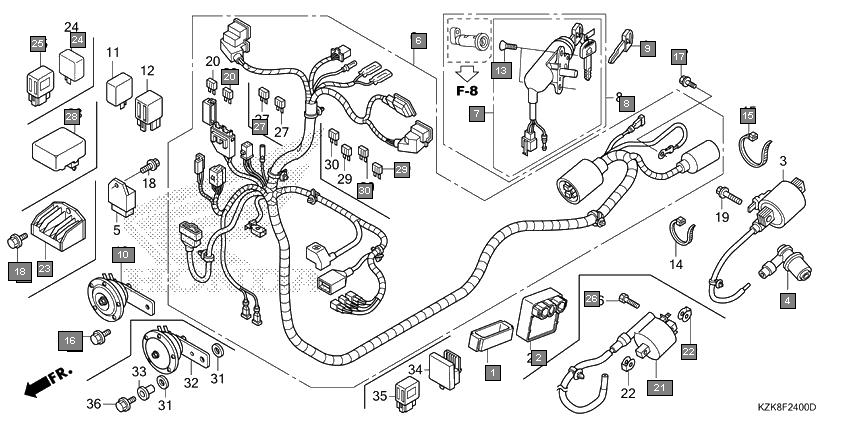

Scooters Dio SCV110FF Frame Wire harness(scv110fc/fd/ff/fh/fbc/fbh)
Ref.No. Part No. Description Oty
1 30401KVE901 CUSHION, C.D.I. UNIT(DENSO) 1
2 30410KVTD01 C.D.I. UNIT 1
3 30700KWP901 CAP ASSY., NOISE SUPPRESSOR(ANU) 1
4 32100KZKD00 HARNESS, WIRE 1
5 32100KZKF00 HARNESS, WIRE 1
6 35012KZKD00 SWITCH ASSY. SET, COMBINATION & LOCK 1
7 35014KZKD00 KEY & SCREW SET 1
8 35121KPL841 KEY, BLANK 1
9 38110KZK901 HORN COMP. 1
10 90164KEE630 SCREW, FLAT, 6X12 2
11 90657KRP901 CABLE, TIE(LONG) 1
12 957020601200 BOLT, FLANGE, 6X12 1
13 957010601200 BOLT, FLANGE, 6X12 1
14 957010601208 BOLT, FLANGE, 6X12 1
15 957020601208 BOLT, FLANGE, 6X12 1
16 957020601608 BOLT, FLANGE, 6X16 1
17 957010601608 BOLT, FLANGE, 6X16 1
18 9820031000 FUSE, BLADE(10A) 2
19 30500KWPD01 COIL ASSY., IGNITION(WINGS) 1
20 30520GFM900 SPACER, IGNITION COIL 2
21 31600KWPD01 RECTIFIER COMP., REGULATE(STAR ENGINEERS) 1
22 31600KWPE02 RECTIFIER COMP., REGULATE(STAR ENGINEERS) 1
23 38301KZK901 RELAY COMP., WINKER 1
24 38301KWPD21 RELAY COMP., WINKER(STAR ENGINEERS) 1
25 38501KPL901 RELAY COMP., STARTER(MULTILINK) 1
26 92101060204J BOLT, HEX., 6X20 2
27 9820031500 FUSE, BLADE(15A) 2
28 30410KZKF01 C.D.I. UNIT 1
