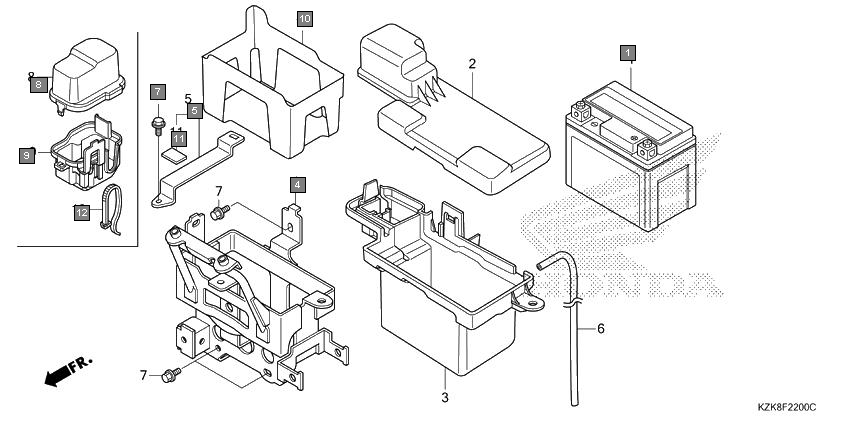

Scooters Dio SCV110FF Frame Battery(scv110fc/fd/ff-3id/fbc)
Ref.No. Part No. Description Oty
1 31500KVT941 BATTERY ASSY.(ETZ4)(EXIDE) 1
2 50330KZKD00 TRAY COMP., BATTERY 1
3 50341KWPD00 BAND COMP., BATTERY 1
4 957010601208 BOLT, FLANGE, 6X12 4
5 50325KWPD01 BOX, RELAY UPPER 1
6 50326KWPD00 BOX, RELAY LOWER 1
7 50381KWPD00 CASE, BATTERY 1
8 50386KWPD00 RUBBER A, BATTERY 1
9 90657KRP901 CABLE, TIE(LONG) 1
