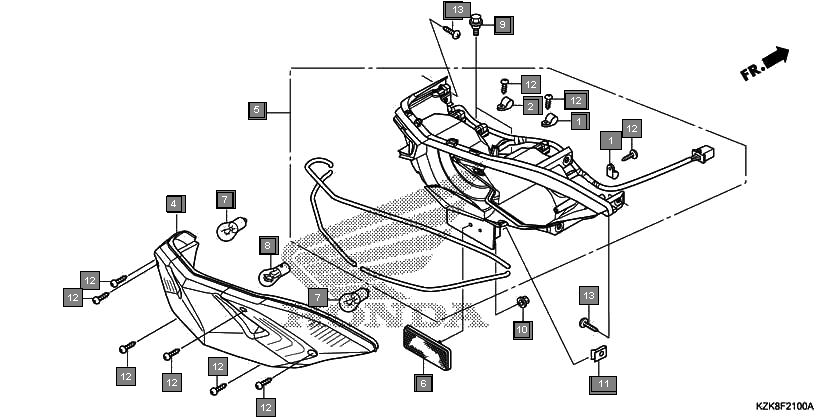

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 32920KVT901 | CLIP A, HARNESS | 2 |
2 | 32930KVT901 | CLIP B, HARNESS | 1 |
3 | 33704KZK901 | LENS, RR. COMBINATION | 1 |
4 | 33711KZK901 | BASE COMP., RR. | 1 |
5 | 33741KPL902 | REFLECTOR, REFLEX | 1 |
6 | 34904KRY971 | BULB, WINKER LIGHT(PY21W)(AMBER)(12V 21W) | 2 |
7 | 34904KTP901 | BULB, WINKER LIGHT(12V 21W)(AMBER) | 2 |
8 | 34907KVN901 | BULB, TAIL & STOP LIGHT (12V 21/5W) | 1 |
9 | 90111KWP900 | BOLT, INNER COVER | 2 |
10 | 90301KWN901 | NUT, U, 5MM | 1 |
11 | 90344KRP900 | NUT, CLIP, 5MM | 2 |
12 | 9390124410 | SCREW, TAPPING, 4X16 | 9 |
13 | 9390335310 | SCREW, TAPPING, 5X16 | 6 |
