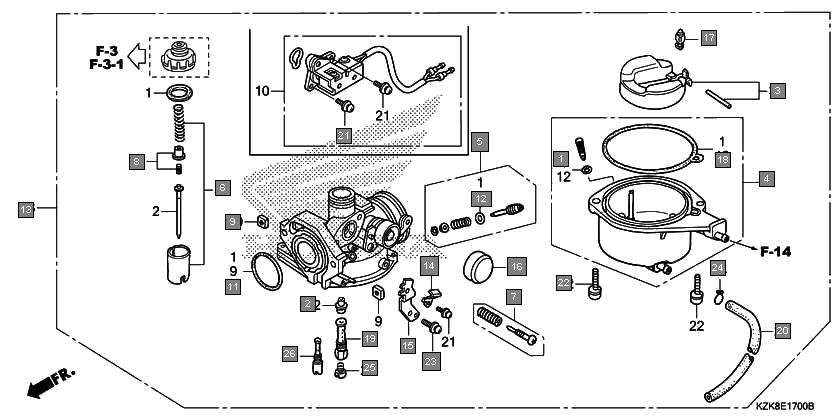

Scooters Dio SCV110FF Engine Carburetor
Ref.No. Part No. Description Oty
1 16010KVT901 GASKET SET 1
2 16010K24901 GASKET SET 1
3 16012KVTD01 NEEDLE SET, JET 1
4 16012KWPE01 NEEDLE SET, JET 1
5 16013KRB901 FLOAT SET 1
6 16015K24901 CHAMBER SET, FLOAT 1
7 16015KVT901 CHAMBER SET, FLOAT 1
8 16016KPH901 SCREW SET 1
9 16022KWPE01 VALVE SET, THROTTLE 1
10 16022KWP901 VALVE SET, THROTTLE 1
11 16028KPL901 SCREW SET 1
12 16037KRS601 PLATE SET, VALVE 1
13 16041KPL901 NUT SET, SQUARE 1
14 16060KWP901 SWITCH ASSY., THROTTLE 1
15 16075KPL901 O-RING 1
16 16076KPL901 O-RING 2
17 16100KZKF01 CARBURETOR ASSY.(PB5TE A) 1
18 16100KZKD01 CARBURETOR ASSY.(PB5LW A) 1
19 16119KPL901 PLATE, STAY 1
20 16119KWP901 STAY, WIRE 1
21 16148KPL901 CAP, CHOKE DUST 1
22 16155KPL901 VALVE COMP., FLOAT 1
23 16163GFP901 GASKET, FLOAT CHAMBER 1
24 16163KWS901 GASKET, FLOAT CHAMBER 1
25 16165KVTD01 HOLDER, NEEDLE JET 1
26 16199KZK901 TUBE, OVERFLOW 1
27 938920401018 SCREW-WASHER, 4X10 3
28 938920401018 SCREW-WASHER, 4X10 1
29 938920401808 SCREW-WASHER, 4X18 2
30 938920501218 SCREW-WASHER, 5X12 1
31 9500202659 CLIP, TUBE(B6.5) 1
32 99101GCK0850 JET, MAIN, #85 1
33 99101KSS0880 JET, MAIN, #88 1
34 99103KWP0350 JET COMP.(#35X#35) 1
