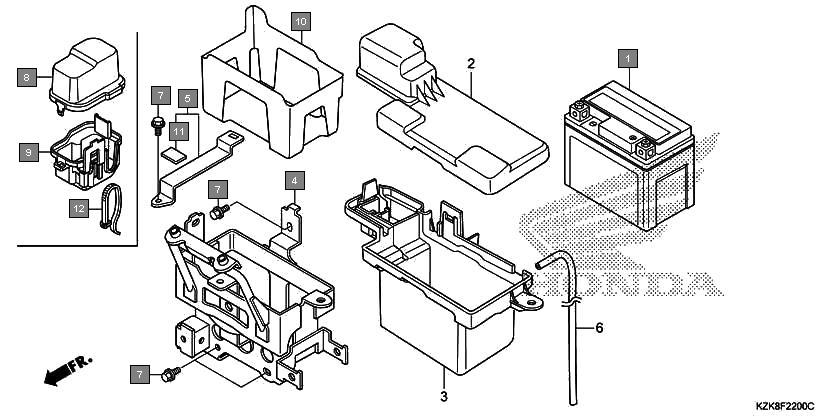

Scooters Dio SCV110FD Frame Battery(scv110fc/fd/fbc/ff-3id)
Ref.No. Part No. Description Oty
1 31500KVT941 BATTERY ASSY.(ETZ4)(EXIDE) 1
2 50330KZKD00 TRAY COMP., BATTERY 1
3 50341KWPD00 BAND COMP., BATTERY 1
4 957010601208 BOLT, FLANGE, 6X12 4
5 957020601208 BOLT, FLANGE, 6X12 4
6 50325KWPD00 BOX, RELAY UPPER 1
7 50326KWPD00 BOX, RELAY LOWER 1
8 50381KWPD00 CASE, BATTERY 1
9 50386KWPD00 RUBBER A, BATTERY 1
10 90657KRP901 CABLE, TIE(LONG) 1
