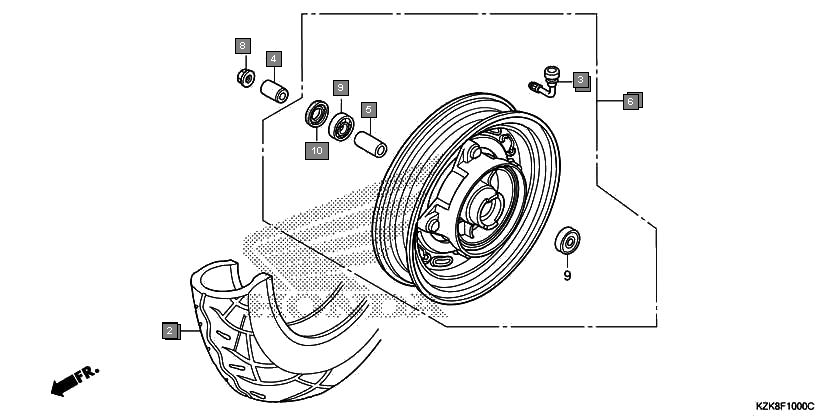

Scooters Dio SCV110FD Frame Front wheel
Ref.No. Part No. Description Oty
1 42711KZK901 TIRE(MRF)(90/100-10M/C 53J) 1
2 42711KZK902 TIRE(TVS)(90/100-10M/C 53J) 1
3 42753KZK901 VALVE, RIM(TRITON) 1
4 44311KPL900 COLLAR, FR. WHEEL SIDE 1
5 44620KPL900 COLLAR, FR. AXLE DISTANCE 1
6 44650KZKD00 WHEEL SUB ASSY., FR. 1
7 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
8 90306KST942 NUT, FLANGE, 12MM (LEO FASTENERS) 1
9 90912KPL900 BEARING, RADIAL BALL, 6201U 2
10 91251KWP901 DUST SEAL, 20X32X5 1
