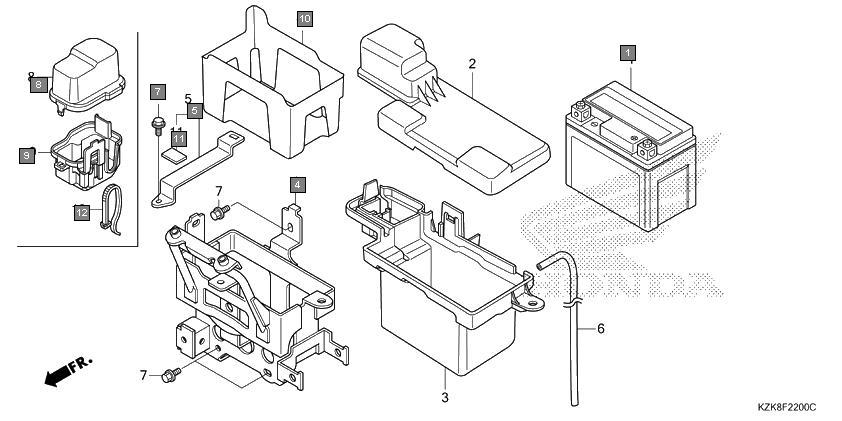

Scooters Dio SCV110FC Frame Battery(scv110fc/fd/ff-3id/fbc)
Ref.No. Part No. Description Oty
1 31500KVT941 BATTERY ASSY.(ETZ4)(EXIDE) 1
2 50325KWP940 BOX, BATTERY UPPER 1
3 50326KZK900 BOX, BATTERY LOWER 1
4 50330KZK900 TRAY COMP., BATTERY 1
5 50341KWP940 BAND, BATTERY 1
6 950031204610 TUBE, VINYL, 5X7X460(95003-12001-10M) 1
7 957010601208 BOLT, FLANGE, 6X12 4
8 957020601208 BOLT, FLANGE, 6X12 4
