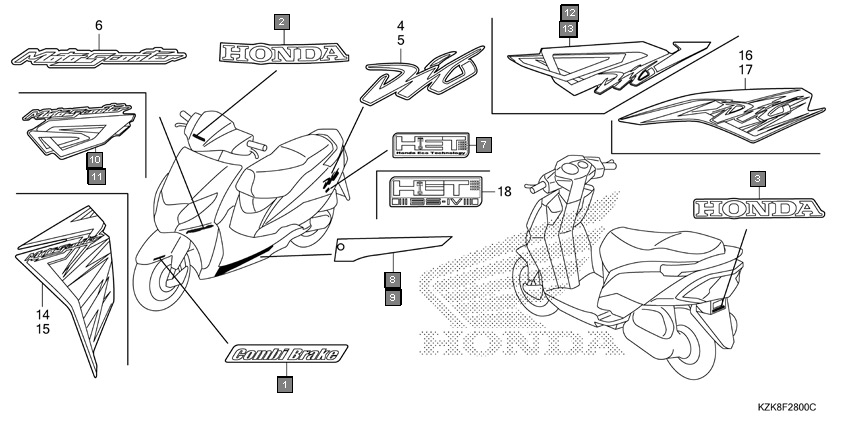

Scooters Dio SCV110FC Frame Mark
Ref.No. Part No. Description Oty
1 86101KZK900ZE MARK, HONDA(75MM) *TYPE1* 1
2 86101KZK900ZB MARK, HONDA(75MM) *TYPE4* 1
3 86101KZK900ZD MARK, HONDA(75MM) *TYPE2* 1
4 86101KZK900ZC MARK, HONDA(75MM) *TYPE3* 1
5 86102KZK900ZA MARK, HONDA *TYPE1* 1
6 86532KZK900 EMBLEM, R. BODY COVER 1
7 86632KZK900 EMBLEM, L. BODY COVER 1
8 86641KZK900ZE MARK, FR. COVER *TYPE1* 1
9 86641KZK900ZC MARK, FR. COVER *TYPE3* 1
10 86641KZK900ZD MARK, FR. COVER *TYPE2* 1
