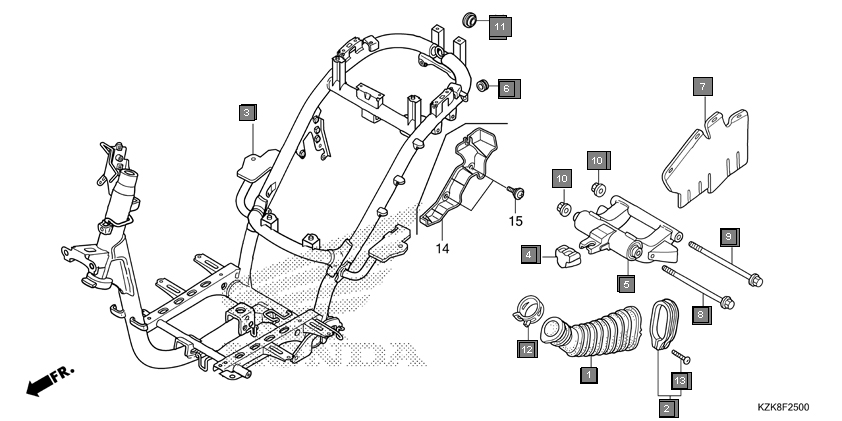

Scooters Dio SCV110FC Frame Frame body
Ref.No. Part No. Description Oty
1 11345KWP900 DUCT, L. COVER 1
2 11346KCW870 BAND, L. COVER DUCT 1
3 50100KZK901 BODY COMP., FRAME 1
4 50352GW0730 RUBBER, LINK STOPPER 1
5 50355KVT900 LINK SUB ASSY., ENGINE HANGER 1
6 64216GJ2730 RUBBER, SCREEN SETTING 2
7 80102KWP900 PLATE, FRAME BODY SPLASH GUARD 1
8 90105KJ9000 BOLT, FLANGE, 10X210 1
9 90106GCC000 BOLT, FLANGE, 10X238 1
10 90304KCS920 NUT, U, 10MM 2
11 90862GCC000 PLUG, END 1
12 91405KPL900 CLAMP, TUBE(D29) 1
13 93500040250G SCREW, PAN, 4X25 1
