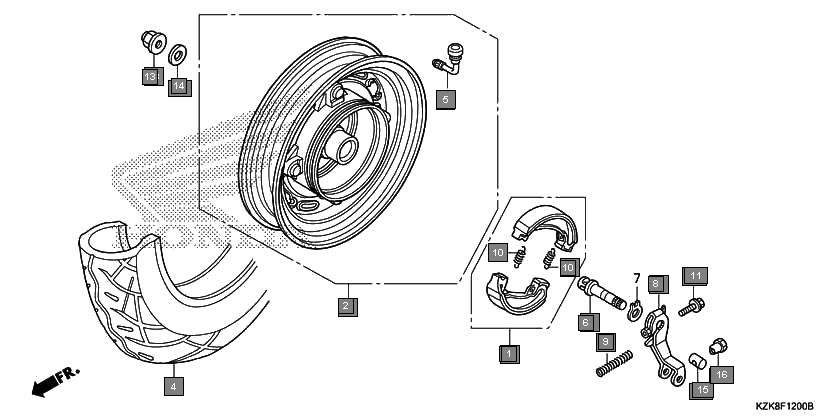

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06430KWP900 | SHOE SET, BRAKE(JB) | 1 |
| 2 | 42650KZK901 | WHEEL SUB ASSY., RR. | 1 |
| 3 | 42711KZK901 | TIRE(MRF)(90/100-10M/C 53J) | 1 |
| 4 | 42711KZK902 | TIRE(TVS)(90/100-10M/C 53J) | 1 |
| 5 | 42753KZK901 | VALVE, RIM(TRITON) | 1 |
| 6 | 42753KRP980 | VALVE, RIM (TAIHEIYO) | 1 |
| 7 | 43141KVT900 | CAM, RR. BRAKE | 1 |
| 8 | 43142KAS890 | SEAT, RR. BRAKE CAM | 1 |
| 9 | 43410KWP900 | ARM, RR. BRAKE | 1 |
| 10 | 43472KPL900 | SPRING, RR. BRAKE ARM | 1 |
| 11 | 45133KPL900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 |
| 12 | 90112KPL900 | BOLT, FLANGE, 6X30 | 1 |
| 13 | 90305KWP901 | NUT, HEX., 16MM | 1 |
| 14 | 90501KPL900 | WASHER, 16MM | 1 |
| 15 | 9501532001 | JOINT B, BRAKE ARM | 1 |
| 16 | 9501542000 | NUT B, BRAKE ROD ADJUSTING | 1 |
