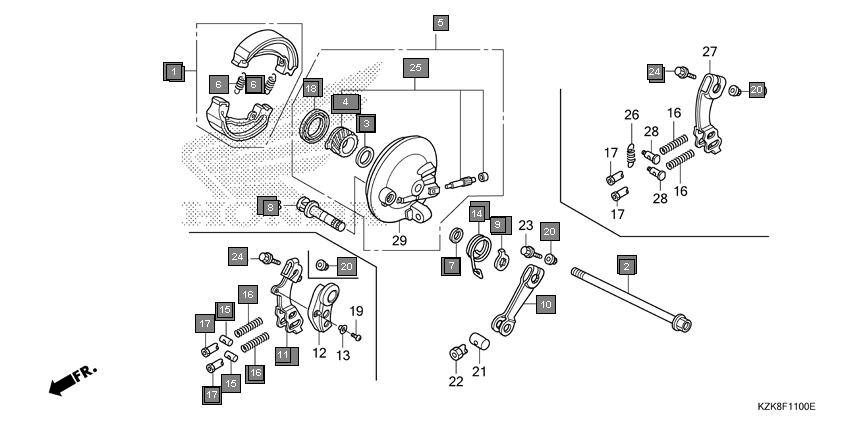

Scooters Dio SCV110FC Frame Front brake panel
Ref.No. Part No. Description Oty
1 06430KWP900 SHOE SET, BRAKE(JB) 1
2 44301KPL900 AXLE, FR. WHEEL 1
3 44809KPL900 WASHER, SPEEDOMETER GEAR 1
4 44811KPL900 GEAR, SPEEDOMETER 1
5 45010KZK900 PANEL SUB COMP., FR. BRAKE 1
6 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
7 45134250000 DUST SEAL, BRAKE CAM 1
8 45141KWP900 CAM, FR. BRAKE 1
9 45145KPL900 INDICATOR, FR. BRAKE 1
10 45410KPL900 ARM, FR. BRAKE 1
11 45435KPL900 SPRING, BRAKE ARM RETURN 1
12 91253KPL900 DUST SEAL, 41X60X7 1
13 9405006000 NUT, FLANGE, 6MM 1
14 9501532001 JOINT B, BRAKE ARM 1
15 9501542000 NUT B, BRAKE ROD ADJUSTING 1
16 957010603200 BOLT, FLANGE, 6X32 1
17 957020603200 BOLT, FLANGE, 6X32 1
18 44820KWP900 GEAR SET, SPEEDOMETER 1
