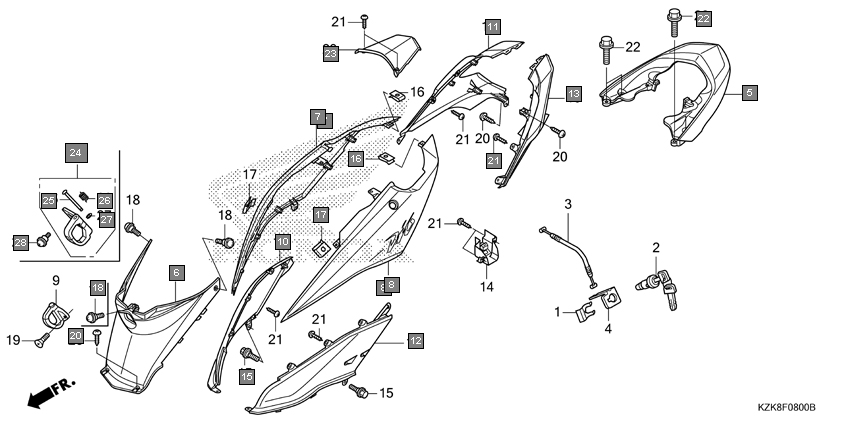

Scooters Dio SCV110FC Frame Body cover
Ref.No. Part No. Description Oty
1 75582KCW870 SPRING, LOCK KEY SETTING 1
2 77239KPL841 KEY, SEAT LOCK 1
3 77240KZK900 CABLE, SEAT LOCK 1
4 77241KZK900 STAY, SEAT LOCK 1
5 77300KZK900ZC GRIP, RR. *NH303M* MAT AXIS GRAY METALLIC 1
6 77300KZK900ZD GRIP, RR. *NHA66P* PEARL SUNBEAM WHITE 1
7 77300KZK900ZB GRIP, RR. *P6M* LEBLON VIOLET METALLIC 1
8 77300KZK900ZA GRIP, RR. *R321* SPORTS RED 1
9 77300KZK900ZE GRIP, RR. *GY142C* CANDY PALM GREEN 1
10 80151KZK900ZA COVER, CENTER *NH1* BLACK 1
11 83100KZK900ZB COVER SET, R. BODY(WL) *P6M* LEBLON VIOLET METALLIC 1
12 83100KZK900ZC COVER SET, R. BODY(WL) *NH303M* MAT AXIS GRAY METALLIC 1
13 83100KZK900ZE COVER SET, R. BODY(WL) *GY142C* CANDY PALM GREEN 1
14 83100KZK900ZA COVER SET, R. BODY(WL) *R321* SPORTS RED 1
15 83100KZK900ZD COVER SET, R. BODY(WL) *NHA66P* PEARL SUNBEAM WHITE 1
16 83200KZK900ZD COVER SET, L. BODY(WL) *NHA66P* PEARL SUNBEAM WHITE 1
17 83200KZK900ZB COVER SET, L. BODY(WL) *P6M* LEBLON VIOLET METALLIC 1
18 83200KZK900ZE COVER SET, L. BODY(WL) *GY142C* CANDY PALM GREEN 1
19 83200KZK900ZA COVER SET, L. BODY(WL) *R321* SPORTS RED 1
20 83200KZK900ZC COVER SET, L. BODY(WL) *NH303M* MAT AXIS GRAY METALLIC 1
21 83508KPL900 HOOK, LUGGAGE 1
22 83520KZK900ZA COVER, R. BODY SIDE *NH1* BLACK 1
23 83530KZK900ZA COVER, R. RR. SIDE *NH1* BLACK 1
24 83620KZK900ZA COVER, L. BODY SIDE *NH1* BLACK 1
25 83630KZK900ZA COVER, L. RR. SIDE *NH1* BLACK 1
26 83640KZK900 COVER, SEAT LOCK CABLE 1
27 90111KWP900 BOLT, INNER COVER 2
28 90344KTE910 NUT, CLIP, 4MM 2
29 90677KANT00 NUT, CLIP, 5MM 2
30 91509GE2760 SCREW, PAN, 5X11.5 3
31 93600050120G SCREW, FLAT, 5X12 2
32 9390325380 SCREW, TAPPING, 5X16 4
33 9390334480 SCREW, TAPPING, 4X16 16
34 957010802800 BOLT, FLANGE, 8X28 4
35 957020802800 BOLT, FLANGE, 8X28 4
36 83510KZK900ZA COVER, RR. CENTER *NH105* MAT BLACK(#15-#20) 1
