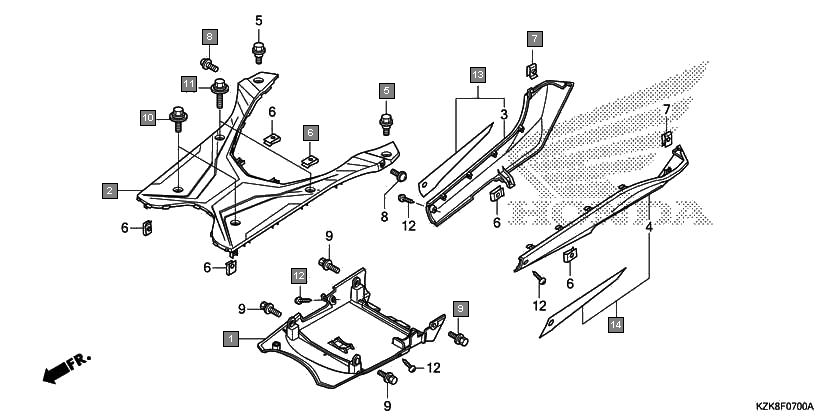

Scooters Dio SCV110FC Frame Floor step
Ref.No. Part No. Description Oty
1 50621KZK900 COVER, UNDER 1
2 64310KZK900ZA STEP, FLOOR *NH1* BLACK 1
3 64320KZK900ZA COVER, R. FLOOR SIDE *NH411M* FORCE SILVER METALLIC 1
4 64320KZK900ZC COVER, R. FLOOR SIDE *NH105* MAT BLACK(#15-#20) 1
5 64320KZK900ZB COVER, R. FLOOR SIDE *NH303M* MAT AXIS GRAY METALLIC 1
6 64330KZK900ZA COVER, L. FLOOR SIDE *NH411M* FORCE SILVER METALLIC 1
7 64330KZK900ZC COVER, L. FLOOR SIDE *NH105* MAT BLACK(#15-#20) 1
8 64330KZK900ZB COVER, L. FLOOR SIDE *NH303M* MAT AXIS GRAY METALLIC 1
9 90111KWP900 BOLT, INNER COVER 2
10 90344KRP900 NUT, CLIP, 5MM 6
11 90677KANT00 NUT, CLIP, 5MM 2
12 91509GE2760 SCREW, PAN, 5X11.5 2
13 934040601607 BOLT-WASHER, 6X16 4
14 934040602507 BOLT-WASHER, 6X25 2
15 934040603207 BOLT-WASHER, 6X32 2
16 9390325380 SCREW, TAPPING, 5X16 4
