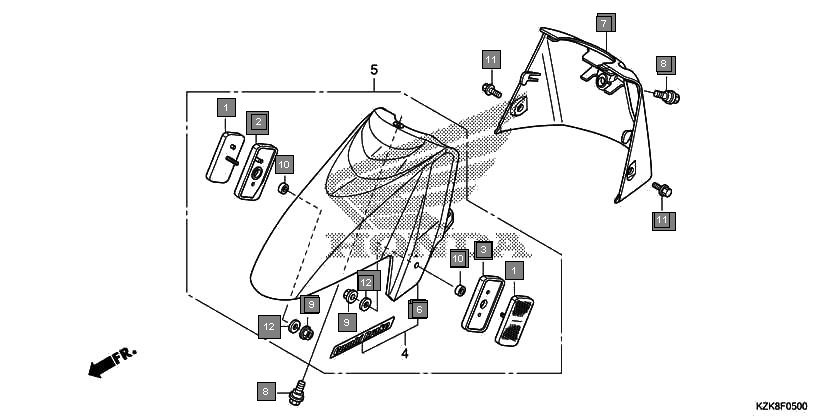

Scooters Dio SCV110FC Frame Front fender
Ref.No. Part No. Description Oty
1 33740KZK951 REFLECTOR, FR. SIDE REFLEX 2
2 33762KZK950 MOUNT, R. SIDE REFLECTOR 1
3 33862KZK950 MOUNT, L. SIDE REFLECTOR 1
4 61100KZK900ZC FENDER A, FR. *NH303M* MAT AXIS GRAY METALLIC 1
5 61100KZK950ZA FENDER A, FR. *R321* SPORTS RED 1
6 61100KZK950ZE FENDER A, FR. *GY142C* CANDY PALM GREEN 1
7 61100KZK900ZE FENDER A, FR. *GY142C* CANDY PALM GREEN 1
8 61100KZK900ZB FENDER A, FR. *P6M* LEBLON VIOLET METALLIC 1
9 61100KZK900ZA FENDER A, FR. *R321* SPORTS RED 1
10 61100KZK950ZB FENDER A, FR. *P6M* LEBLON VIOLET METALLIC 1
11 61100KZK950ZD FENDER A, FR. *NHA66P* PEARL SUNBEAM WHITE 1
12 61100KZK950ZC FENDER A, FR. *NH303M* MAT AXIS GRAY METALLIC 1
13 61100KZK900ZD FENDER A, FR. *NHA66P* PEARL SUNBEAM WHITE 1
14 61110KZK900ZA FENDER B, FR. *NH1* BLACK 1
15 90111KPL900 BOLT, INNER COVER 2
16 90301KWN901 NUT, U, 5MM 2
17 90312KZK950 COLLAR, 9.5X5.5 2
18 934040601207 BOLT-WASHER, 6X12 2
19 9410305800 WASHER, PLAIN, 5MM 2
