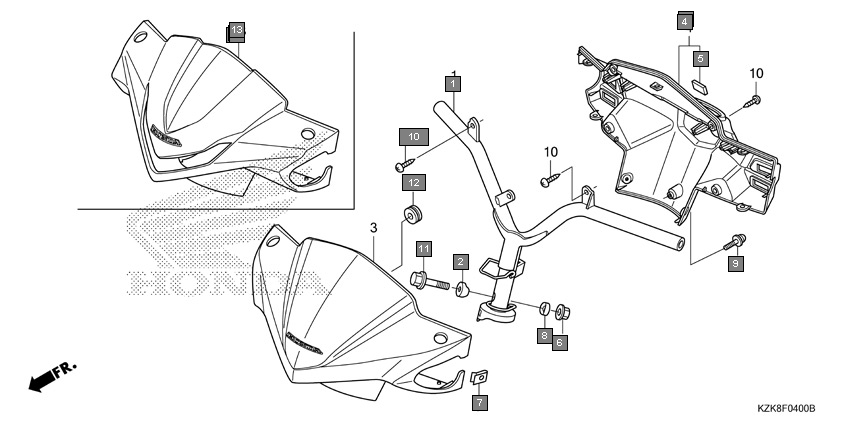

Scooters Dio SCV110FC Frame Steering handle/handle cover
Ref.No. Part No. Description Oty
1 53100KZK900 HANDLE COMP., STEERING 1
2 53124KWP900 COLLAR, HANDLE SETTING 1
3 53200KZK900ZC COVER SET, FR. HANDLE(WL) *TYPE3* 1
4 53200KZK900ZE COVER SET, FR. HANDLE(WL) *TYPE1* 1
5 53200KZK900ZG COVER SET, FR. HANDLE(WL) *TYPE4 1* 1
6 53200KZK900ZD COVER SET, FR. HANDLE(WL) *TYPE2* 1
7 53200KZK900ZF COVER SET, FR. HANDLE(WL) *TYPE5 1* 1
8 53250KZK900ZA COVER COMP., RR. HANDLE *NH1* BLACK 1
9 86150KWS601 EMBLEM, PRODUCT(SJS) 1
10 90304KCS920 NUT, U, 10MM 1
11 90344KTE910 NUT, CLIP, 4MM 2
12 90502KWP900 COLLAR B, HANDLE SETTING 1
13 938910501607 SCREW-WASHER, 5X16 1
14 9390334480 SCREW, TAPPING, 4X16 8
15 958011005508 BOLT, FLANGE, 10X55 1
16 958021005508 BOLT, FLANGE, 10X55 1
17 64216GJ2730 RUBBER, SCREEN SETTING 1
