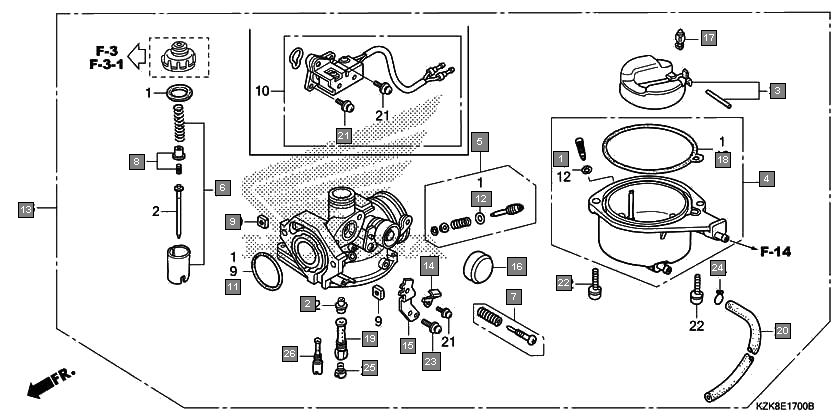

Scooters Dio SCV110FC Engine Carburetor
Ref.No. Part No. Description Oty
1 16010KVT901 GASKET SET 1
2 16012KVT941 NEEDLE SET, JET 1
3 16013KRB901 FLOAT SET 1
4 16015KVT901 CHAMBER SET, FLOAT 1
5 16016KPH901 SCREW SET 1
6 16022KWP901 VALVE SET, THROTTLE 1
7 16028KPL901 SCREW SET 1
8 16037KRS601 PLATE SET, VALVE 1
9 16041KPL901 NUT SET, SQUARE 1
10 16060KWP901 SWITCH ASSY., THROTTLE 1
11 16075KPL901 O-RING 1
12 16076KPL901 O-RING 2
13 16100KZK901 CARBURETOR ASSY.(PB5LS A) 1
14 16119KPL901 PLATE, STAY 1
15 16119KWP901 STAY, WIRE 1
16 16148KPL901 CAP, CHOKE DUST 1
17 16155KPL901 VALVE COMP., FLOAT 1
18 16163GFP901 GASKET, FLOAT CHAMBER 1
19 16165KWP901 HOLDER, NEEDLE JET 1
20 16199KZK901 TUBE, OVERFLOW 1
21 938920401018 SCREW-WASHER, 4X10 3
22 938920401808 SCREW-WASHER, 4X18 2
23 938920501218 SCREW-WASHER, 5X12 1
24 9500202659 CLIP, TUBE(B6.5) 1
25 99101KWP0900 JET, MAIN, #90 1
26 99103KWP0350 JET COMP.(#35X#35) 1
