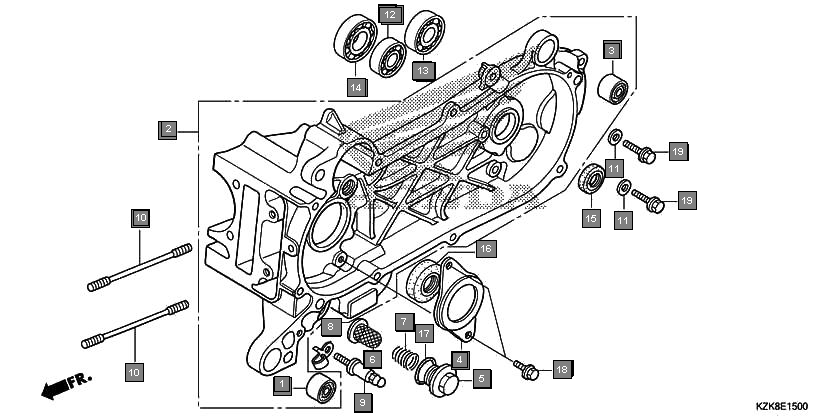

Scooters Dio SCV110FC Engine Left crankcase
Ref.No. Part No. Description Oty
1 11103KWP900 BUSH, ENGINE HANGER RUBBER 1
2 11200KWP900 CRANKCASE COMP., L. 1
3 11203GC7300 BUSH, RR. CUSHION UNDER RUBBER 1
4 11204GCC000 PLATE, OIL SEAL STOPPER 1
5 12361KPL900 CAP, TAPPET ADJUSTING HOLE 1
6 15421KPL900 SCREEN, OIL FILTER 1
7 15426KCW880 SPRING, OIL FILTER SCREEN 1
8 16236KZK900 CLAMPER, OVER FLOW 1
9 90008KPL900 BOLT, MAIN STAND SPRING 1
10 90032KWP900 BOLT B, STUD, 7X198.5 2
11 90474333000 WASHER, SEALING, 8MM 2
12 91006KWP901 BEARING, RADIAL BALL, 6201(NSK) 1
13 91007KWP901 BEARING, RADIAL BALL, 6202(NSK) 1
14 91104KCW880 BEARING, RADIAL BALL, 6204 1
15 91202KJ9003 OIL SEAL, 20X32X6 1
16 91202KWP901 OIL SEAL, 20.8X53X6 1
17 91302001020 O-RING, 30.8MM 1
18 957020601600 BOLT, FLANGE, 6X16 2
19 957010601600 BOLT, FLANGE, 6X16 2
20 957010801200 BOLT, FLANGE, 8X12 2
21 957020801200 BOLT, FLANGE, 8X12 2
