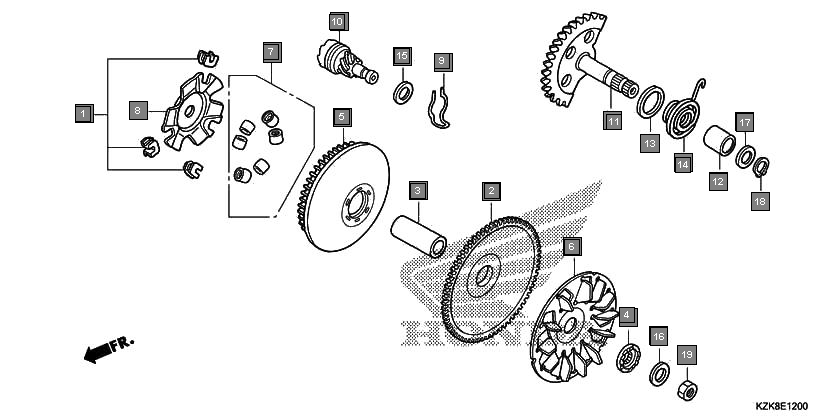

Scooters Dio SCV110FC Engine Drive face
Ref.No. Part No. Description Oty
1 22011KPL940 PIECE SET, SLIDE 1
2 22102KWP900 FACE, DRIVE(66T) 1
3 22105KWP900 BOSS, DRIVE FACE 1
4 22109KWP900 RATCHET, STARTER 1
5 22110KWP900 FACE COMP., MOVABLE DRIVE 1
6 22113KWP900 FIN, DRIVE FACE 1
7 22123KWP900 ROLLER SET, WEIGHT 1
8 22131KWP900 PLATE, RAMP 1
9 28223GCC000 SPRING, KICK DRIVEN GEAR 1
10 28230KVT900 GEAR COMP., KICK DRIVEN(7T) 1
11 28250KVT901 SPINDLE COMP., KICK STARTER (52T) 1
12 28253KVT900 BUSH, KICK SPINDLE 1
13 28255KPL900 COLLAR, KICK BOSS 1
14 28281GCC000 SPRING, KICK RETURN 1
15 90412KZL840 WASHER, THRUST, 10MM 1
16 90426KVB900 WASHER, SPECIAL, 14MM 1
17 90451KVT900 WASHER, KICK SPINDLE 1
18 90608KVT901 CIRCLIP, EXTERNAL, 16MM 1
19 9403014200 NUT, HEX., 14MM 1
20 28250KVT900 SPINDLE COMP., KICK STARTER 1
