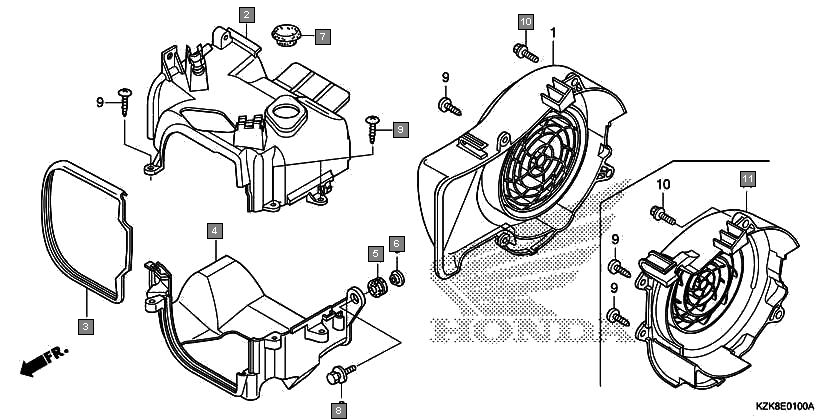

Scooters Dio SCV110FC Engine Shroud/fan cover
Ref.No. Part No. Description Oty
1 19610KWP900 COVER COMP., FAN 1
2 19621KVT940 SHROUD, IN. 1
3 19625KVT940 SEAL, SHROUD 1
4 19631KVT940 SHROUD, EX. 1
5 19639GBC000 RUBBER, MOUNTING 1
6 33715GB0900 COLLAR, TAILLIGHT SETTING 1
7 82871671000 GROMMET, DRAIN HOLE, 25MM 1
8 934040602000 BOLT-WASHER, 6X20 1
9 9390325380 SCREW, TAPPING, 5X16 5
10 960010602507 BOLT, FLANGE, 6X25 2
