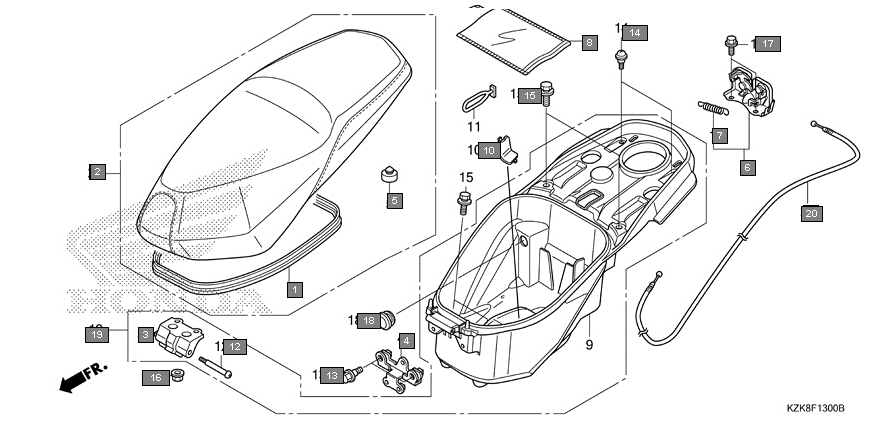

Scooters Dio SCV110FBC Frame Seat/luggage box
Ref.No. Part No. Description Oty
1 77115KZK900 RUBBER, SEAL 1
2 77200KZK901ZA SEAT COMP., DOUBLE *TYPE1* 1
3 77201KWP900 HINGE, SEAT 1
4 77203KWP900 STAY, HOOK LUGGAGE 1
5 77206KG8900 RUBBER, SEAT SETTING 2
6 77235KWP900 CATCH COMP., SEAT 1
7 77236GBL000 SPRING, SEAT CATCH 1
8 77251KPL900 BAG, SERVICE BOOK 1
9 81250KZK900 BOX, LUGGAGE 1
10 81255KZK900 COVER, CARBURETOR MAINTENANCE 1
11 89012KWP900 BAND, TOOL 1
12 90105KTP900 PIN, HINGE 1
13 90112KRP900 BOLT, FLANGE, 6X18 2
14 91509GE2760 SCREW, PAN, 5X11.5 2
15 934040601207 BOLT-WASHER, 6X12 4
16 9405006000 NUT, FLANGE, 6MM 2
17 957010601208 BOLT, FLANGE, 6X12 2
18 957020601208 BOLT, FLANGE, 6X12 2
