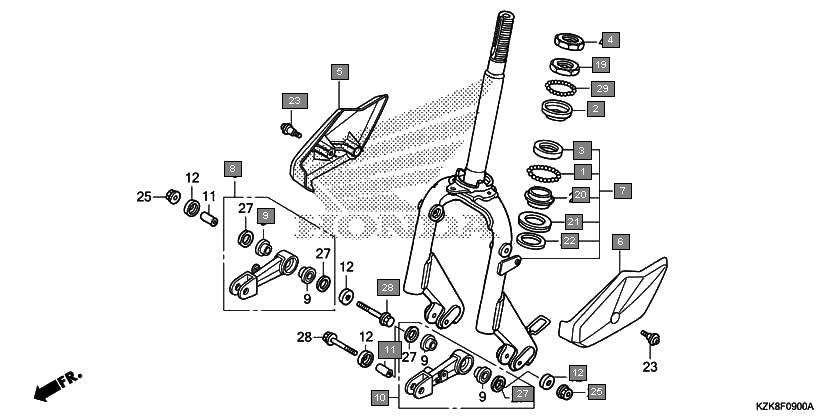

Scooters Dio SCV110FBC Frame Front fork
Ref.No. Part No. Description Oty
1 9621108000 BALL, STEEL, #8(1/4) 19
2 50301KEM900 RACE, STEERING UPPER BALL 1
3 50302268010 RACE, STEERING BOTTOM BALL 1
4 50306KPL900 NUT, STEERING STEM LOCK 1
5 51103KZK900 COVER, R. PIVOT 1
6 51104KZK900 COVER, L. PIVOT 1
7 51110KZK900 FORK SUB ASSY., FR. 1
8 51215KZK900 ARM SET, R. PIVOT 1
9 51314KZK901 BUSH, PIVOT ARM 4
10 51315KZK900 ARM SET, L. PIVOT 1
11 51334KPL900 COLLAR, ARM PIVOT 2
12 51336KZK900 CAP, FR. FORK DISTANCE COLLAR 4
13 53211KEM900 RACE, STEERING TOP CONE 1
14 53212250010 RACE, STEERING BOTTOM CONE 1
15 53214250000 DUST SEAL, STEERING HEAD 1
16 53215KPL900 WASHER, STEERING HEAD DUST SEAL 1
17 90102KPL900 SCREW, FORK COVER 2
18 90309KTE911 NUT, FLANGE SPECIAL, 8MM 2
19 91251GZ5003 SEAL, PIVOT ARM 4
20 958010805508 BOLT, FLANGE, 8X55 2
21 958020805508 BOLT, FLANGE, 8X55 2
22 9621105000 BALL, STEEL, #5(5/32) 26
