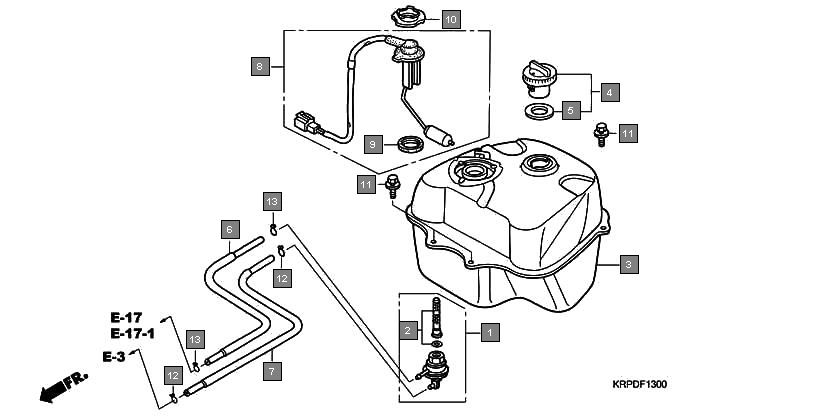

Scooters Dio SCV100FA Frame Fuel tank
Ref.No. Part No. Description Oty
1 16950KRP981 COCK ASSY., FUEL 1
2 16952KRP980 SCREEN SET, FUEL STRAINER 1
3 17500KPL841 TANK COMP., FUEL 1
4 17620KRP980 CAP COMP., FUEL FILLER 1
5 17632383831 PACKING, FUEL FILLER CAP 1
6 17683KPL900 TUBE COMP., FUEL 1
7 17684KPL840 TUBE COMP., VACUUM 1
8 37080KPL840 FUEL UNIT SET 1
9 37801GA7700 PACKING, BASE 1
10 37802GA7700 RETAINER, FUEL UNIT 1
11 934040601208 BOLT-WASHER, 6X12 4
12 9500202070 CLIP, TUBE(B7) 2
13 9500202080 CLIP, TUBE(B8) 2
