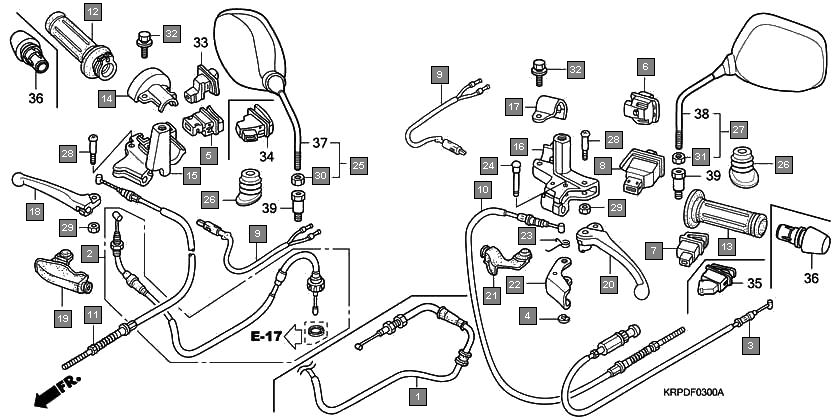

Scooters Dio SCV100FA Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 17910KRP980 CABLE COMP., THROTTLE 1
2 17920KPL315 CABLE SET, THROTTLE 1
3 17950KPL900 CABLE COMP., CHOKE 1
4 30158GW3980 E-RING, 3MM 1
5 35170KPL842 SWITCH UNIT, DIMMER(JAY USHIN) 1
6 35200KVT911 SWITCH UNIT, WINKER(JAY USHIN) 1
7 35340KPL841 SWITCH ASSY., FR. STOP 2
8 43450KRP980 CABLE COMP., RR. BRAKE 1
9 45450KRP980 CABLE COMP., FR. BRAKE 1
10 53146KRB901 GRIP COMP., THROTTLE 1
11 53140KRPN40 GRIP COMP., THROTTLE 1
12 53166KPL901 GRIP, L. HANDLE 1
13 53166KRPN40 GRIP, L. HANDLE 1
14 53167KPL900 HOUSING, UPPER THROTTLE 1
15 53168KRP980 HOUSING, UNDER THROTTLE 1
16 53168KRPN40 HOUSING, UNDER THROTTLE 1
17 53172KRP980 BRACKET, HANDLE 1
18 53173KPL900 BAND, HANDLE BRACKET 1
19 53175KRP980 LEVER, R. STEERING HANDLE 1
20 53175KPL900 LEVER, R. STEERING HANDLE 1
21 53176KRP980 COVER, R. HANDLE LEVER 1
22 53178KRP980 LEVER, L. STEERING HANDLE 1
23 53178KPL900 LEVER, L. HANDLE 1
24 53179KRP980 COVER, L. HANDLE LEVER 1
25 53182KWP900 LEVER COMP., PARKING 1
26 53182GW3980 SPRING, PARKING LEVER RETURN 1
27 53183GW3980 PIN, PARKING LEVER PIVOT 1
28 88110KRP870 MIRROR ASSY., R. BACK 1
29 88113KRP901 CAP, LOCK NUT 2
30 88113KRPN40 CAP, LOCK NUT 2
31 88120KRP870 MIRROR ASSY., L. BACK 1
32 90115KRP980 SCREW, HANDLE LEVER PIVOT 2
33 90115KPL900 SCREW, HANDLE LEVER PIVOT 2
34 90304KPL900 NUT, HEX., 5MM 2
35 90310KPL900 LOCK NUT, R. MIRROR (LEFT HAND THREAD) 1
36 90201KV3680 NUT, HEX., 8MM(L.H.) 1
37 90311KPL900 LOCK NUT, L. MIRROR 1
38 934010602000 BOLT-WASHER, 6X20 2
39 35150KVT911 SWITCH UNIT, LIGHTING(JAY USHIN) 1
40 35160KWP901 SWITCH UNIT, STARTER 1
41 35180KWP901 SWITCH UNIT, HORN 1
42 53105KRC900 END, STEERING HANDLE 2
43 88110KWP901 MIRROR ASSY., R. BACK 1
44 88120KWP901 MIRROR ASSY., L. BACK 1
45 90102KVT900 BOLT, ADAPTER, 8MM 2
