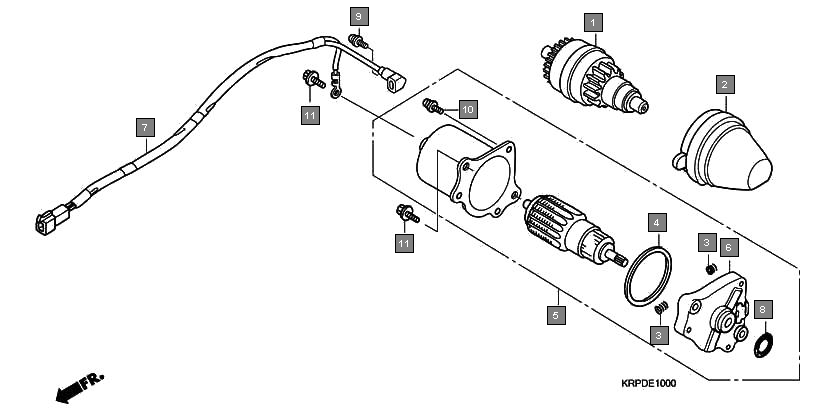

Scooters Dio SCV100FA Engine Starting motor
Ref.No. Part No. Description Oty
1 28120KPL901 PINION ASSY., STARTER(14/40T) 1
2 28150KPL900 HOLDER COMP., STARTER PINION 1
3 31204KG8004 SPRING, CARBON BRUSH 2
4 31206GW3004 PACKING 1
5 31206KPL842 PACKING 1
6 31210GCC771 MOTOR UNIT, STARTING 1
7 31210KPL842 MOTOR UNIT, STARTING 1
8 31213KEE630 BRACKET COMP., FR. 1
9 31213KPL842 BRACKET COMP., FR. 1
10 32105KRP981 SUB HARNESS 1
11 91309KEE630 O-RING 1
12 91309KPL842 O-RING 1
13 938920400608 SCREW-WASHER, 4X6 1
14 938920501608 SCREW-WASHER, 5X16 3
15 960010603500 BOLT, FLANGE, 6X35 2
