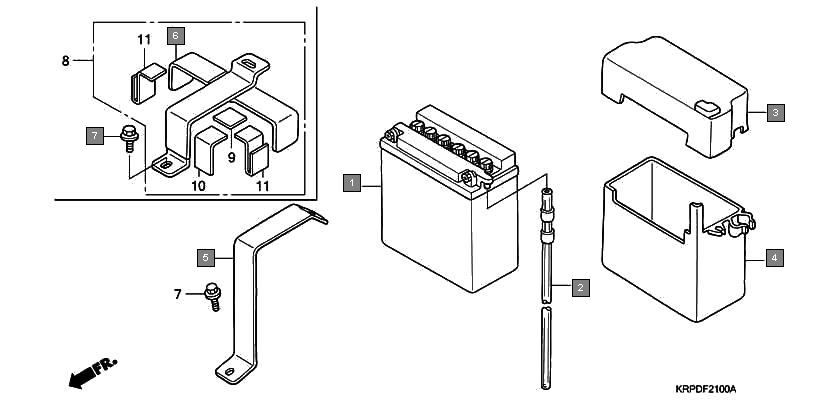

Scooters Dio SCV100F9 Frame Battery
Ref.No. Part No. Description Oty
1 31500KEE630 BATTERY ASSY. 1
2 31500KRP981 BATTERY (YTX5L-BS)(TIANJIN YUASA) 1
3 31500KRP901 BATTERY(12MX5L-B) 1
4 31500KRP902 BATTERY(AB5L-B) 1
5 31502KRP900 TUBE, BATTERY BREATHER 1
6 50325KPL900 BOX, BATTERY UPPER 1
7 50326KPL900 BOX, BATTERY LOWER 1
8 50338KRP900 BAND, BATTERY 1
9 50338KRP980 BAND, BATTERY 1
10 957010601208 BOLT, FLANGE, 6X12 1
